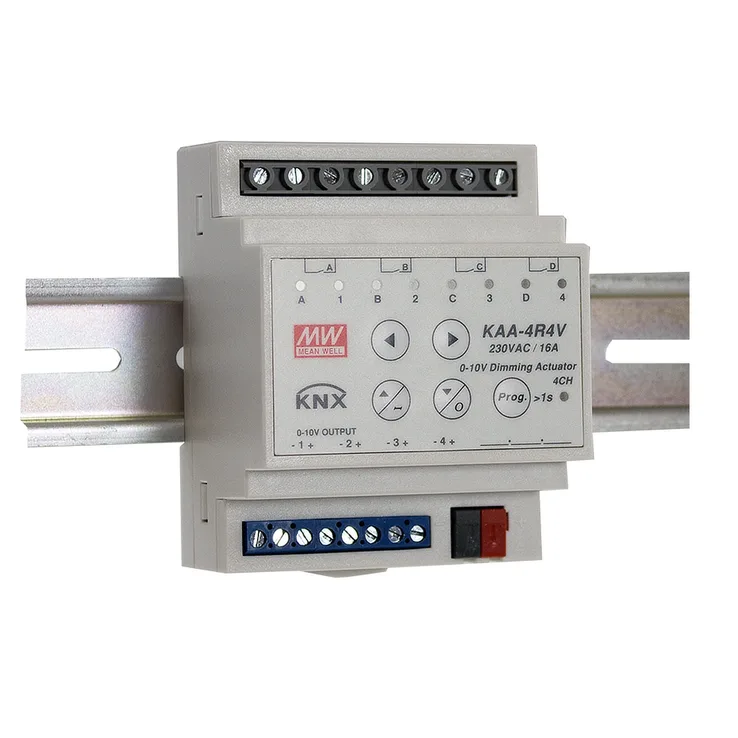

MEAN WELL KAA-4R4V-S Series KNX LED Drivers

Download Datasheet
Models:
  • KAA-4R4V-10S
Manufacturer: MEAN WELL
Type: KNX LED Drivers

KAA-4R4V-S Series Features:

The KAA-4R4V-S dimming actuator is a 4 channels device with high quality independent latching relay to turn on or off, which is suitable for MEANWELL all kinds of LED drivers,

Features:

  • Dimming and switching LED driver and conventional electronic ballast
  • LED Indicator for each channel
  • Linear or logarithmic dimming curve programable via ETS software
  • Support KNX data secure
  • Manual control via push button on panel
  • Programmable various time and scene function
  • 3 years warranty
Working Temperature -30~45°C
Safety Standards BS EN/EN50491-3, BS EN/EN60669-1, BS EN/EN60669-2-1, BS EN/EN60669-2-5, EAC TP TC 004 approved
EMC Standards Compliance to BS EN/EN50491-5-1, -2,-3, BS EN/EN500090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN630445-5,-1,-2,-3, EAC TP TC 020
