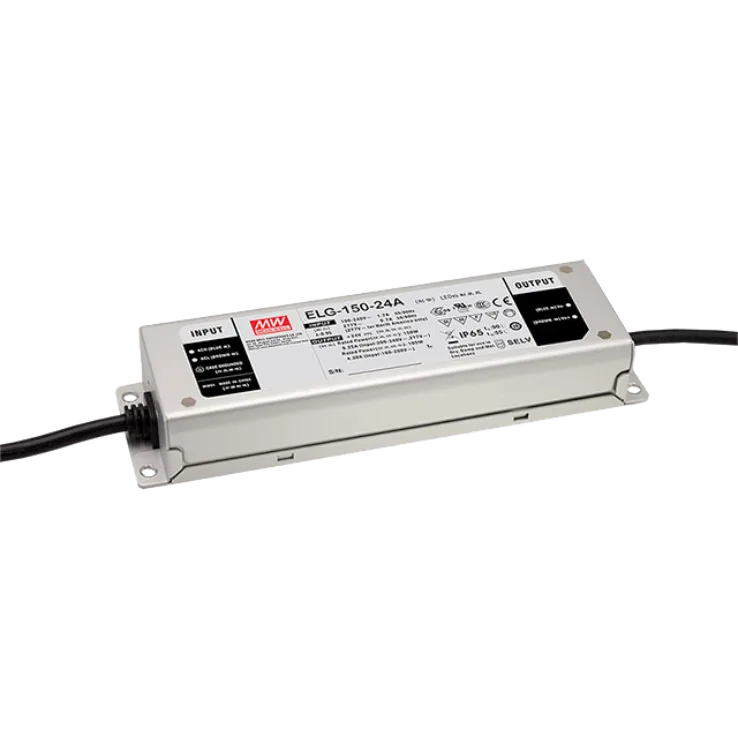

MEAN WELL ELG-150-B-3Y Series 0-10V Dimmable Constant Voltage LED Drivers 120–150W

Models:	ELG-150-12B-3Y ELG-150-24B-3Y ELG-150-36B-3Y ELG-150-42B-3Y ELG-150-48B-3Y ELG-150-54B-3Y
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ELG-150-B-3Y Series Features:

Constant Voltage + Constant Current mode output

Typical lifetime>50000 hours

Protections: Short circuit/ Over Voltage/ Over temperature

Other features:

Spec	ELG-150-12B-3Y	ELG-150-24B-3Y	ELG-150-36B-3Y	ELG-150-42B-3Y	ELG-150-48B-3Y	ELG-150-54B-3Y
Wattage	120	150	150	150	150	150
Input Voltage	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC	100-305VAC 142-431VDC
Output Voltage	12	24	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	21.6-26.4V(A type only)	21.6-26.4V(A type only)	32.4-39.6V (A type only)	37.8-46.2V (A type only)	43.2-52.8V (A type only)	48.6-59.4V (A type only)
Dimensions	219x 63x 35.5	219x 63x 35.5	219x 63x 35.5	219x 63x 35.5	219x 63x 35.5	219x 63x 35.5
Working Temperature	-40~+90°C (Refer to "OUTPUT LOAD vs TEMPERATURE")
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
