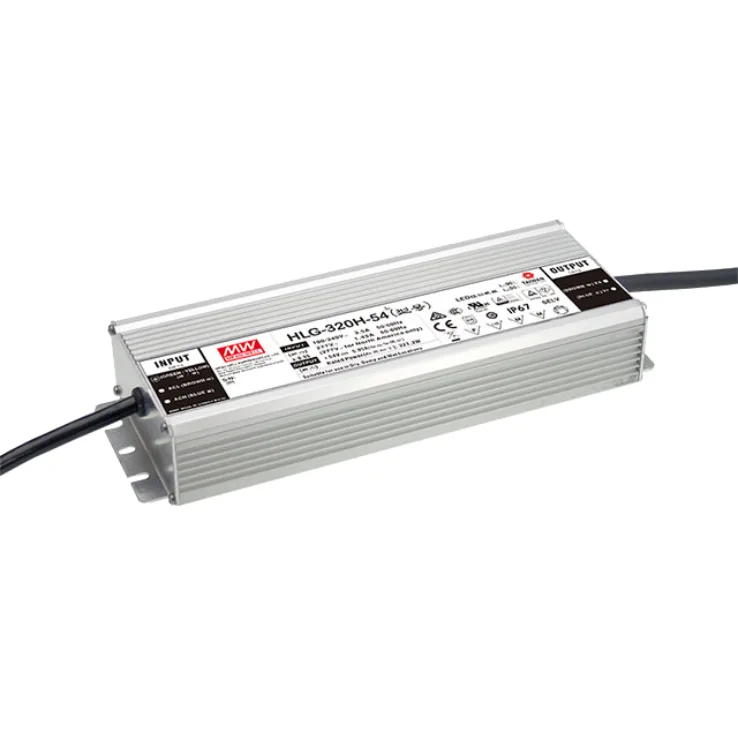

Mean Well HLG-320H-B Series 0-10V Dimmable Constant Voltage LED Drivers 264–320W

Download Datasheet
Models:
  • HLG-320H-12B
  • HLG-320H-15B
  • HLG-320H-20B
  • HLG-320H-24B
  • HLG-320H-30B
  • HLG-320H-36B
  • HLG-320H-42B
  • HLG-320H-48B
  • HLG-320H-54B
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

HLG-320H-B Series Features:

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

IP67 design for indoor or outdoor installations

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • High efficiency up to 95%
  • Output current adjustable through output cable or internal potentiometer
  • Cooling by free air convection
  • Suitable for LED lighting and street lighting applications
  • Meet 4KV surge immunity level (IEC61000-4-5)
  • Built-in active PFC function, PF>0.9 for 60% of load or higher
  • 7 years warranty

Wattage 264 320 320 320 320 320 320 320 320
Input Voltage 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC 90~305VAC, 127~431VDC
Output Voltage 12 15 20 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage +/-6% rated output voltage
Dimensions 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8 252 x 90 x 43.8
Working Temperature -40~+70°C (Refer to "Derating Curve")
Safety Standards UL8750, TUV EN61347-1, PSE J61347-1, J61347-2-13, UL1012, UL60950-1 UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, UL1012, UL60950-1
EMC Standards EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
