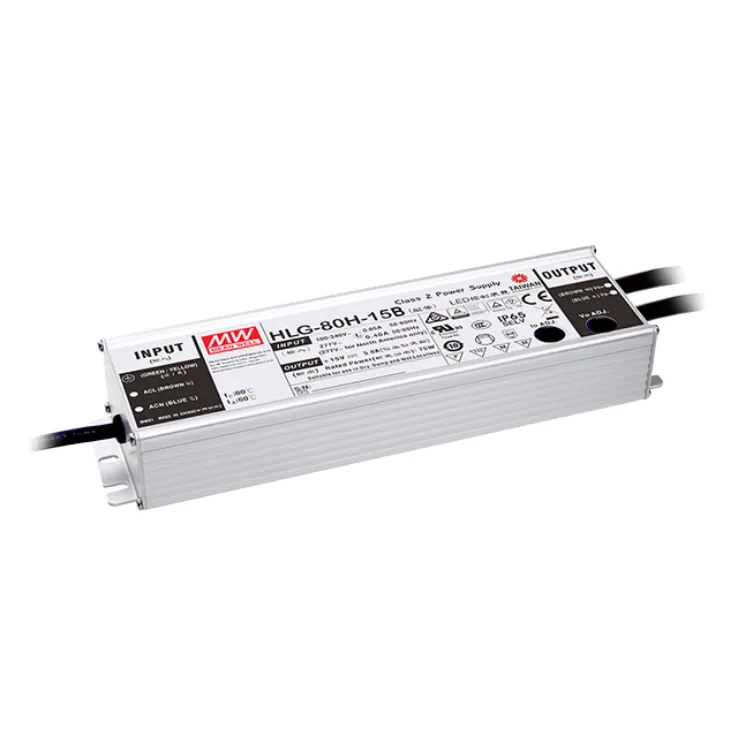

MEAN WELL HLG-80H-B Series 0-10V Dimmable Constant Voltage LED Drivers 60–80W

Models:	HLG-80H-12B HLG-80H-15B HLG-80H-20B HLG-80H-24B HLG-80H-30B HLG-80H-36B HLG-80H-42B HLG-80H-48B HLG-80H-54B
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

HLG-80H-B Series Features:

Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

Built-in active PFC, PF>0.9 for 60% of load or higher

7 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

Spec	HLG-80H-12B	HLG-80H-15B	HLG-80H-20B	HLG-80H-24B	HLG-80H-30B	HLG-80H-36B	HLG-80H-42B	HLG-80H-48B	HLG-80H-54B
Wattage	60	80	80	80	80	80	80	80	80
Input Voltage	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC
Output Voltage	12	15	20	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage
Working Temperature	-40~+80°C (refer to output derating curve)
Safety Standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-2-13 approved; Design refer to UL60950-1, EN60950-1
EMC Standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024
