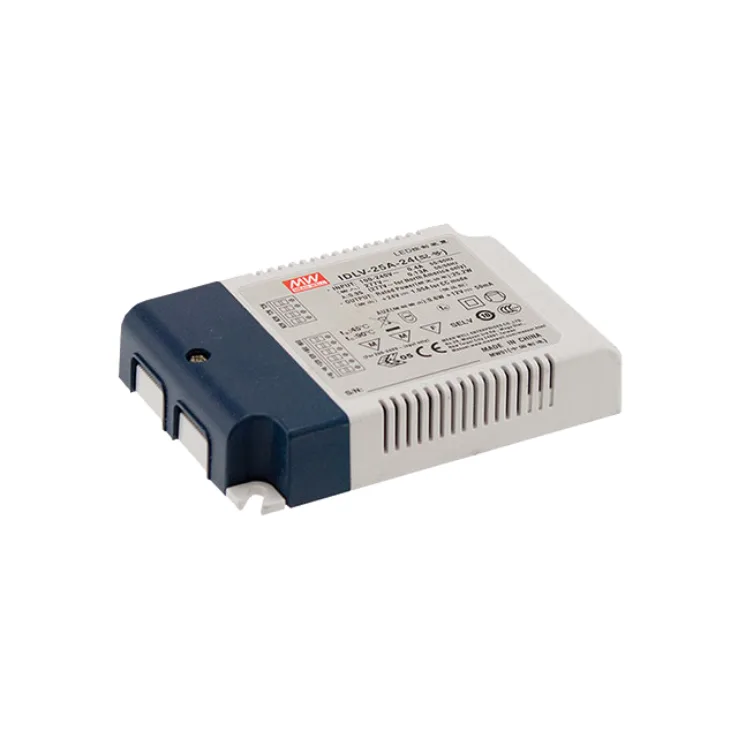

Mean Well IDLV-25 Series 0-10V Dimmable Constant Voltage LED Drivers 25W

Download Datasheet
Models:
  • IDLV-25-12
  • IDLV-25-24
  • IDLV-25-36
  • IDLV-25-48
  • IDLV-25-60
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

IDLV-25 Series Features:

Constant Voltage PWM style output with frequency 1KHz


Protections: Short circuit; Over Current

Other features:

  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5W (Blank-Type)
  • Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
  • 3 years warranty
Wattage 25 25 25 25 25
Input Voltage 90-295VAC 90-295VAC 90-295VAC 90-295VAC 90-295VAC
Output Voltage 12 24 36 48 60
Output Voltage Options Single Single Single Single Single
Dimensions 110x 75x 22 110x 75x 22 110x 75x 22 110x 75x 22 110x 75x 22
Working Temperature -20-+90°C
Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
