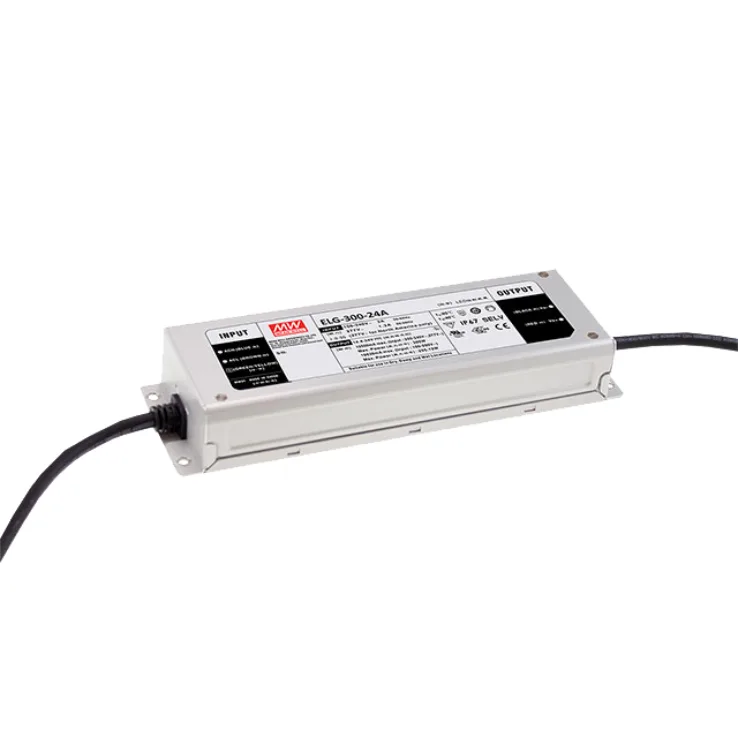

MEAN WELL ELG-300-A-3Y Series Constant Voltage LED Drivers 264–300W

Models:	ELG-300-12A-3Y ELG-300-24A-3Y
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ELG-300-A-3Y Series Features:

ELG-300 series is a 300W LED driver featuring with constant current and constant voltage mode design. ELG-300 operates from 100~305VAC and offers CV mode or CC mode applications.

Features:

Constant Voltage + Constant Current mode output
Protection Functions: OCP, SCP, OVP, OTP
IP67 rating for indoor or outdoor installations
Output adjustable via potentiometer
Typical lifetime >50000 hours
5 years warranty

Spec	ELG-300-12A-3Y	ELG-300-24A-3Y
Wattage	264	300
Input Voltage	100~305	100~305
Output Current	22	12.5
Output Voltage	12	24
Output Voltage Options	11.2~12.8	22.4~25.6
Dimensions	2467739.5mm (LWH)	2467739.5mm (LWH)
Working Temperature	Tcase=-40~+85°C
Safety Standards	UL8750 (type"HL")(Ecept for 12 V), CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13 independant, EN62384; EAC TP TC 004; GB19510.1, GB19510.14; KC61347-2-13; IS15855(Part2/Sec13), IP67 approved
