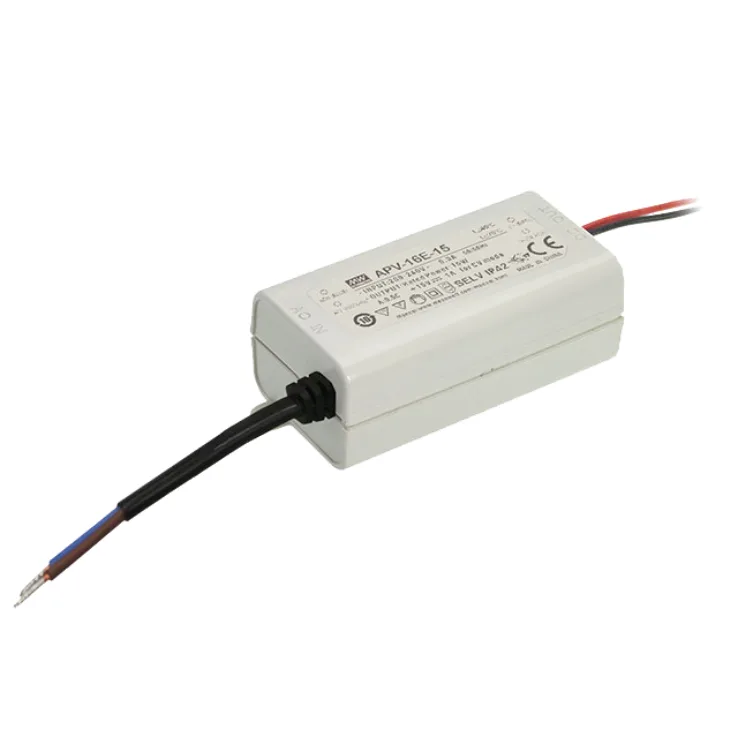

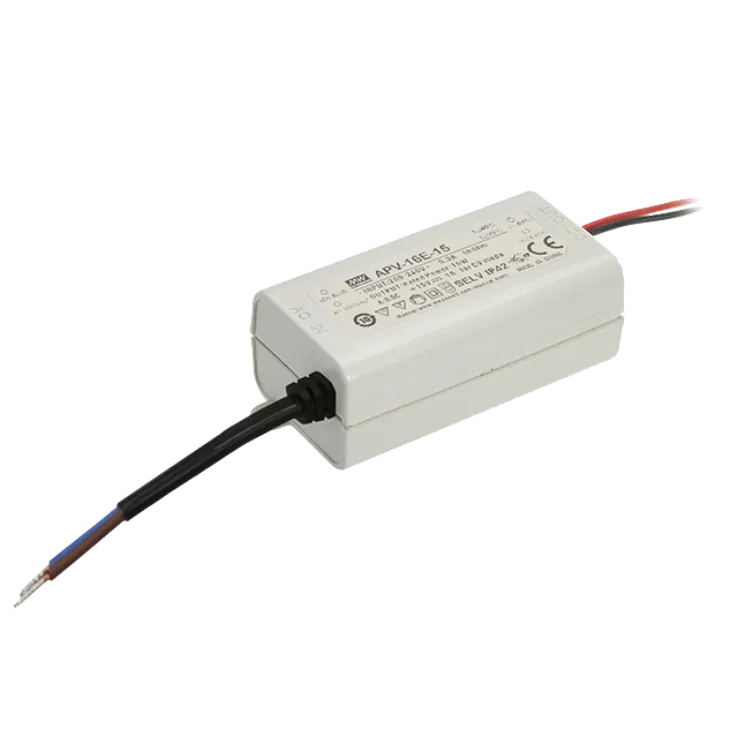

MEAN WELL APV-16E Series Non-dim Constant Voltage LED Drivers 13–16W

Models:	APV-16E-5 APV-16E-12 APV-16E-15 APV-16E-24
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

APV-16E Series Features:

Constant Current

Fully isolated plastic case

Protections: Short circuit

Other features:

Spec	APV-16E-5	APV-16E-12	APV-16E-15	APV-16E-24
Wattage	13	15	15	16
Input Voltage	180~264VAC; 254~370VDC	180~264VAC; 254~370VDC	180~264VAC; 254~370VDC	180~264VAC; 254~370VDC
Output Voltage	5	12	15	24
Output Voltage Options	Single	Single	Single	Single
Dimensions	77 x 40 x 29	77 x 40 x 29	77 x 40 x 29	77 x 40 x 29
Working Temperature	-30~+70°C
Safety Standards	IP42 approved; design refer to EN61347-1, EN61347-2-13
EMC Standards	EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
