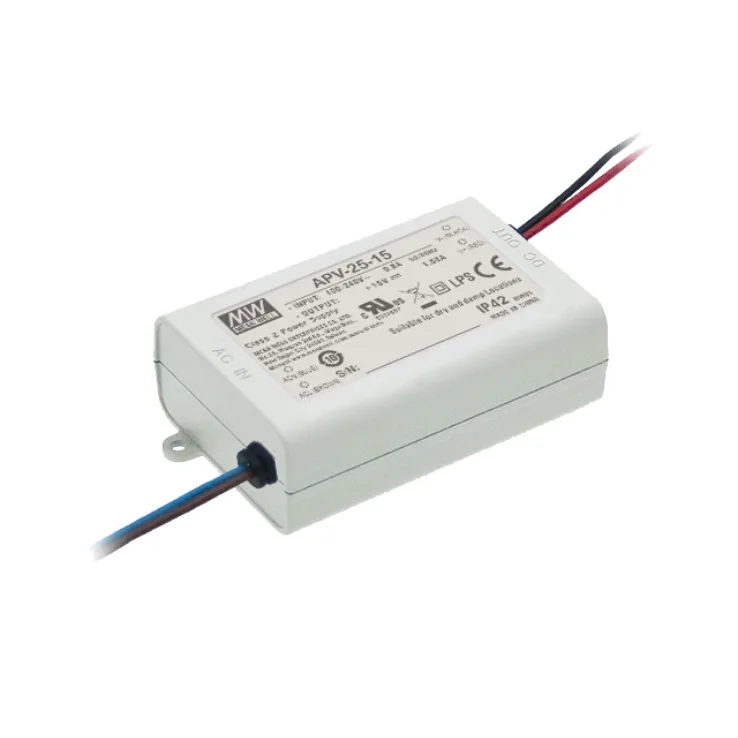

MEAN WELL APV-25 Series Non-dim Constant Voltage LED Drivers 17.5–25W

Models:	APV-25-5 APV-25-12 APV-25-15 APV-25-24 APV-25-36
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

APV-25 Series Features:

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

Spec	APV-25-5	APV-25-12	APV-25-15	APV-25-24	APV-25-36
Wattage	17.5	25	25	25	25
Input Voltage	90~264VAC, 127VDC~370VDC	90~264VAC, 127VDC~370VDC	90~264VAC, 127VDC~370VDC	90~264VAC, 127VDC~370VDC	90~264VAC, 127VDC~370VDC
Output Voltage	5	12	15	24	36
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	84x 57x 29.5	84x 57x 29.5	84x 57x 29.5	84x 57x 29.5	84x 57x 29.5
Working Temperature	-30~+70°C (Refer to "Derating Curve")
Safety Standards	Design refer to EN60950-1, UL8750
EMC Standards	EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A
