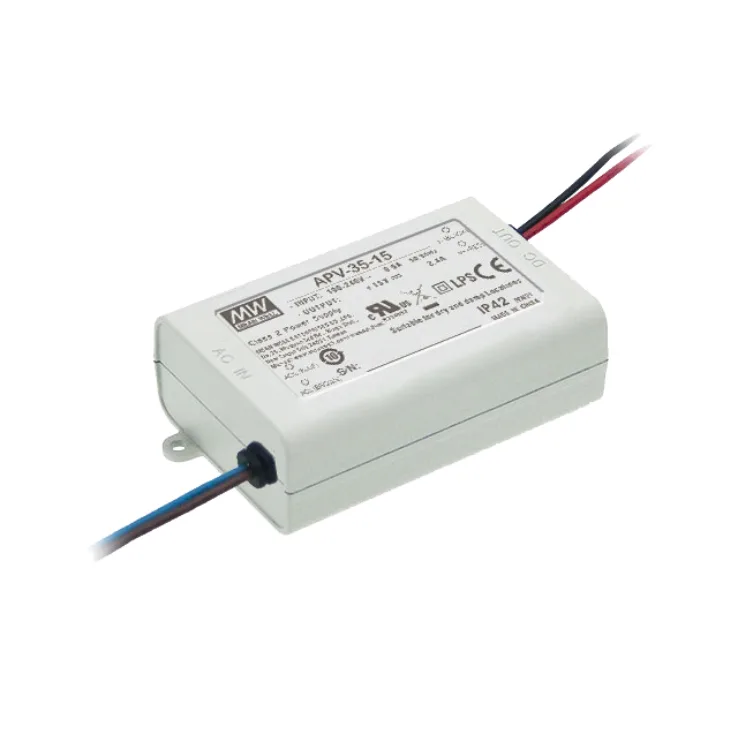

Mean Well APV-35 Series Non-dim Constant Voltage LED Drivers 25–35W

Download Datasheet
Models:
  • APV-35-5
  • APV-35-12
  • APV-35-15
  • APV-35-24
  • APV-35-36
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

APV-35 Series Features:

Constant Voltage

Fully isolated plastic case

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Withstand 300VAC surge input for 5 seconds
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 25 35 35 35 35
Input Voltage 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC
Output Voltage 5 12 15 24 36
Output Voltage Options Single Single Single Single Single
Dimensions 84x 57x 29.5 84x 57x 29.5 84x 57x 29.5 84x 57x 29.5 84x 57x 29.5
Working Temperature -30~+70°C (Refer to "Derating Curve")
Safety Standards Design refer to EN60950-1, UL8750
EMC Standards EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A
