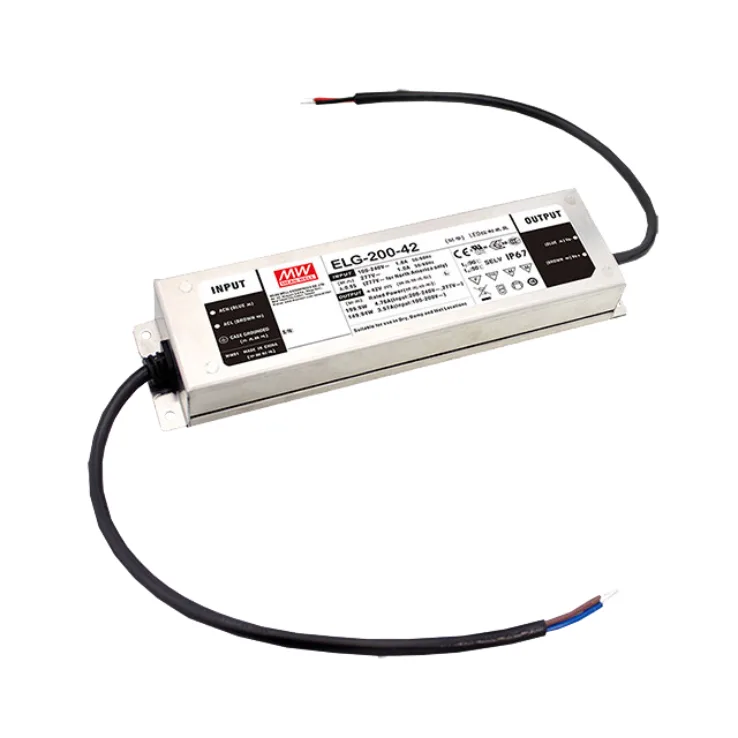

Mean Well ELG-200-A-3Y Series Non-dim Constant Voltage LED Drivers 192–200W

Download Datasheet
Models:
  • ELG-200-12A-3Y
  • ELG-200-24A-3Y
  • ELG-200-36A-3Y
  • ELG-200-42A-3Y
  • ELG-200-48A-3Y
  • ELG-200-54A-3Y
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ELG-200-A-3Y Series Features:

Constant Current + Constant Voltage mode output

Metal housing design with functional ground

Protections: Short Circuit/ Over Voltage/ Over Temperature/ Over Current

Other features:

  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; Dali
  • Built-in active PFC function
  • No load/standby power consumption <0.5W
  • IP67 / IP65 rated design for indoor or outdoor installations
  • Typical lifetime >50000 hours
  • 5 years warranty
Wattage 192 200 200 200 200 200
Input Voltage 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC
Output Voltage 12 24 36 42 48 54
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 11.2-12.8V(A type only) 22.4-25.6V(A type only) 33.5-38.5V (A type only) 39-45V (A type only) 44.8-51.2V (A type only) 50-57V (A type only)
Dimensions 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5
Working Temperature -40~+90B0C
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
