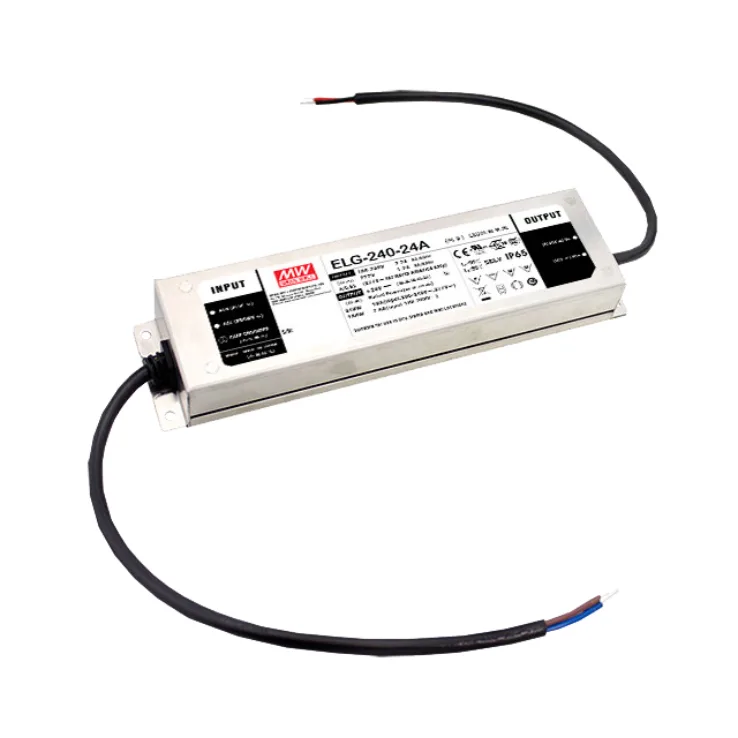

Mean Well ELG-240-A-3Y Series Non-dim Constant Voltage LED Drivers 240W

Download Datasheet
Models:
  • ELG-240-24A-3Y
  • ELG-240-36A-3Y
  • ELG-240-42A-3Y
  • ELG-240-48A-3Y
  • ELG-240-54A-3Y
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

ELG-240-A-3Y Series Features:

Constant current mode output

Metal housing design

Protections: Short circuit/ Over Voltage/ Over temperature

Other features:

  • Built-in active PFC function
  • No load power consumption <0.5W
  • IP67 / IP65 rated design for indoor or outdoor installations
  • Typical lifetime>50000 hours
  • 3 in 1 dimming
  • 5 years warranty
Wattage 240 240 240 240 240
Input Voltage 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC 100-305VAC 142-431VDC
Output Voltage 24 36 42 48 54
Output Voltage Options Single Single Single Single Single
DC output adjustment 22.4-25.6V(A type only) 18-36V (A type only) 21-42V (A type only) 24-48V (A type only) 27-54V (A type only)
Dimensions 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5 244x 71x 37.5
Working Temperature -40~+90°C
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load) ; EN61000-3-3,GB17625.1, GB17743 Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level (surge immunity Line-Easrt 6KV, Line-Line 4KV)
