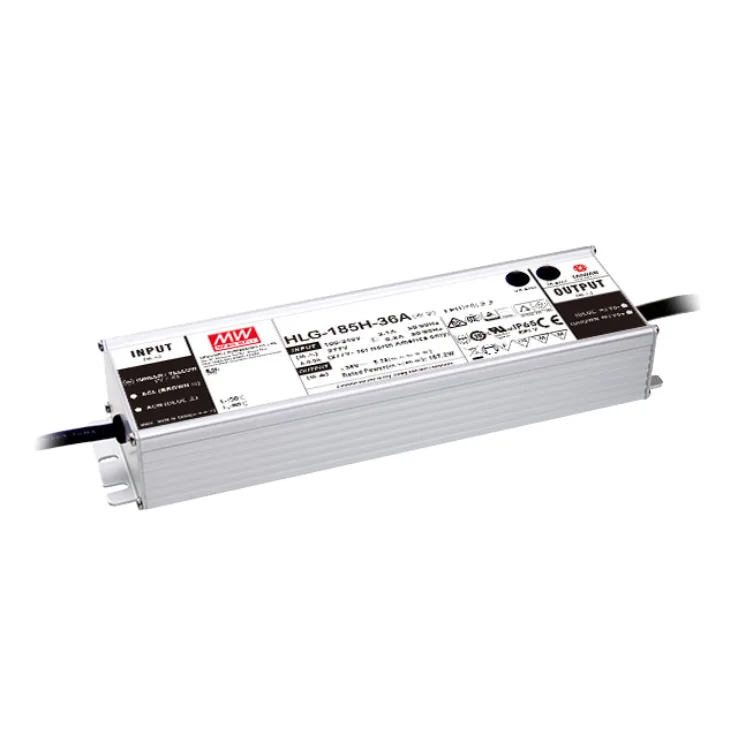

MEAN WELL HLG-185H-A Series Non-dim Constant Voltage LED Drivers 156–187W

Models:	HLG-185H-12A HLG-185H-15A HLG-185H-20A HLG-185H-24A HLG-185H-30A HLG-185H-36A HLG-185H-42A HLG-185H-48A HLG-185H-54A
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

HLG-185H-A Series Features:

IP67 design for indoor or outdoor installations

Built-in active PFC, PF>0.9 for 60% of load or higher

7 years warranty

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

Universal AC input (up to 305VAC) / Full range
High efficiency up to 95%
Output current adjustable through output cable or internal potentiometer
Cooling by free air convection
Suitable for LED lighting and street lighting applications
Meet 4KV surge immunity level (IEC61000-4-5)
Optional CQC models available
IP67rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)

Spec	HLG-185H-12A	HLG-185H-15A	HLG-185H-20A	HLG-185H-24A	HLG-185H-30A	HLG-185H-36A	HLG-185H-42A	HLG-185H-48A	HLG-185H-54A
Wattage	156	173	186	180	186	187	185	187	180
Input Voltage	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC
Output Voltage	12	15	20	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	10.8 ~ 13.5V	13.5 ~ 17V	17 ~ 22V	22 ~ 27V	27 ~ 33V	33 ~ 40V	38 ~ 46V	43 ~ 53V	+/-10% rated output voltage
Dimensions	228x68x38.8	228x68x38.8	228x68x38.8		228x68x38.8	228x68x38.8	228x68x38.8	228x68x38.8
Working Temperature	-40~+70°C (Refer to "Derating Curve")
Safety Standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1
EMC Standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
