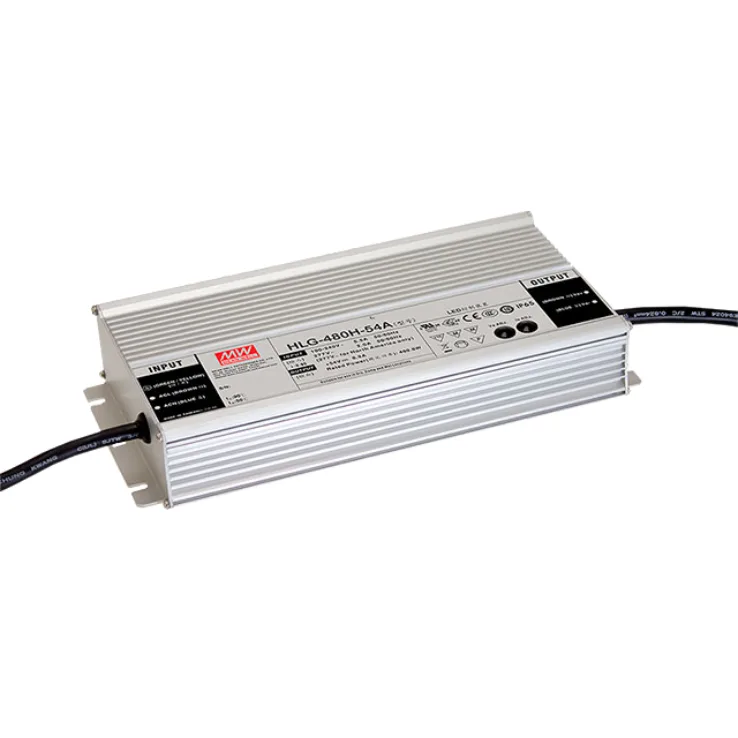

Mean Well HLG-480H-A Series Non-dim Constant Voltage LED Drivers 478.8–480W

Download Datasheet
Models:
  • HLG-480H-24A
  • HLG-480H-30A
  • HLG-480H-36A
  • HLG-480H-42A
  • HLG-480H-48A
  • HLG-480H-54A
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

HLG-480H-A Series Features:

A Type: Io and Vo adjustable through built-in potentiometer

B Type: 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance)

Metal housing with class I design

Protections: Short circuit / Over voltage / Over Current / Over temperature

Other features:

  • IP67 / IP65 design for indoor or outdoor installations
  • Constant Voltage mode output design
  • Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
  • Built-in active PFC function
  • Typical lifetime >62000 hours
  • 7 years warranty
Wattage 480 480 478.8 478.8 480 480
Input Voltage 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC
Output Voltage 24 30 36 42 48 54
Output Voltage Options Single Single Single Single Single Single
Dimensions 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8 262x 125x 43.8
Working Temperature -40~+90B0C (Refer to b -40~+85B0C (Refer to b
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
