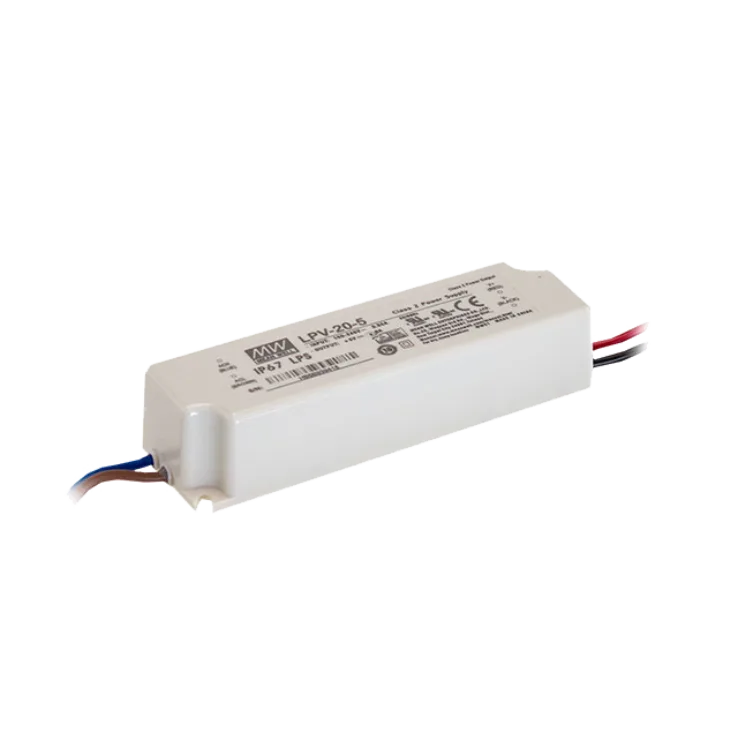

MEAN WELL LPV-20 Series Non-dim Constant Voltage LED Drivers 15–20W

Download Datasheet
Models:
  • LPV-20-5
  • LPV-20-12
  • LPV-20-15
  • LPV-20-24
Manufacturer: MEAN WELL
Type: Constant Voltage LED Drivers

LPV-20 Series Features:

Constant Voltage

Fully encapsulated with IP67 level

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Class 2 power unit
  • Isolation class II, no F.G.
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 15 20 20 20
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Voltage 5 12 15 24
Output Voltage Options Single Single Single Single
DC output adjustment N/A N/A N/A N/A
Dimensions 118 x 35 x 26 118 x 35 x 26 118 x 35 x 26 118 x 35 x 26
Working Temperature -30~+70°C
Safety Standards UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13
EMC Standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
