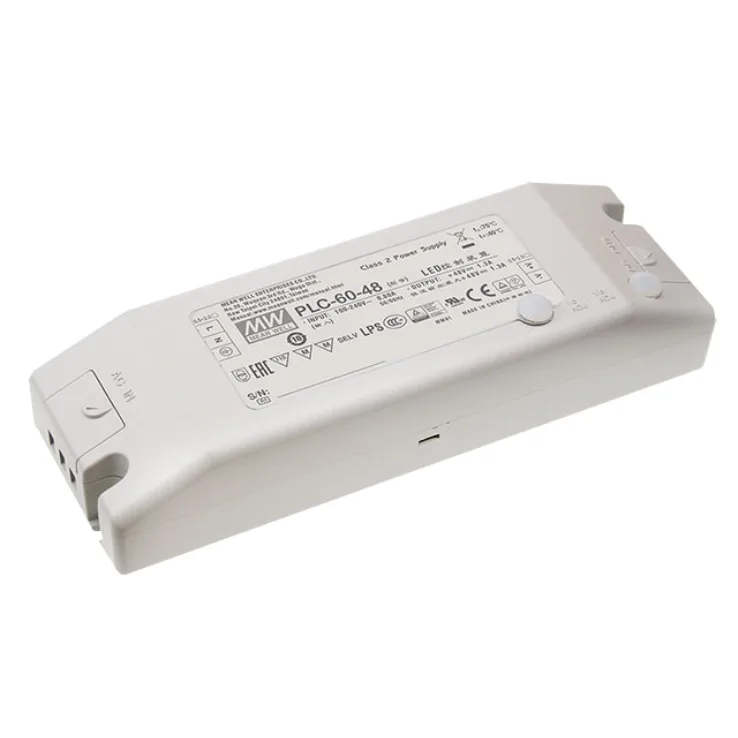

MEAN WELL PLC-60 Series Non-dim Constant Voltage LED Drivers 60W

Models:	PLC-60-12 PLC-60-15 PLC-60-20 PLC-60-24 PLC-60-27 PLC-60-36 PLC-60-48
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

PLC-60 Series Features:

Built-in constant current limiting circuit (C.V. + C.C. mode)

Protections: Short circuit/ Over current/ Over voltage/ Over temperature

Other features:

Spec	PLC-60-12	PLC-60-15	PLC-60-20	PLC-60-24	PLC-60-27	PLC-60-36	PLC-60-48
Wattage	60	60	60	60	60	60	60
Input Voltage	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC	90~264VAC; 127~370VDC
Output Voltage	12	15	20	24	27	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer
Dimensions	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35
Working Temperature	-30~+50°C (Refer to "Derating Curve")
Safety Standards	UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved
EMC Standards	EN55015, EN55022 class B, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
