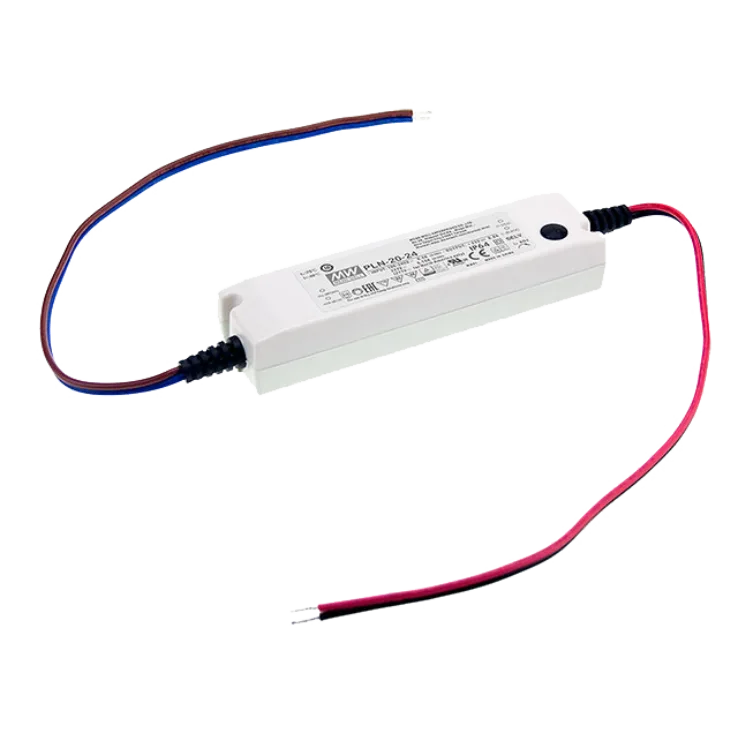

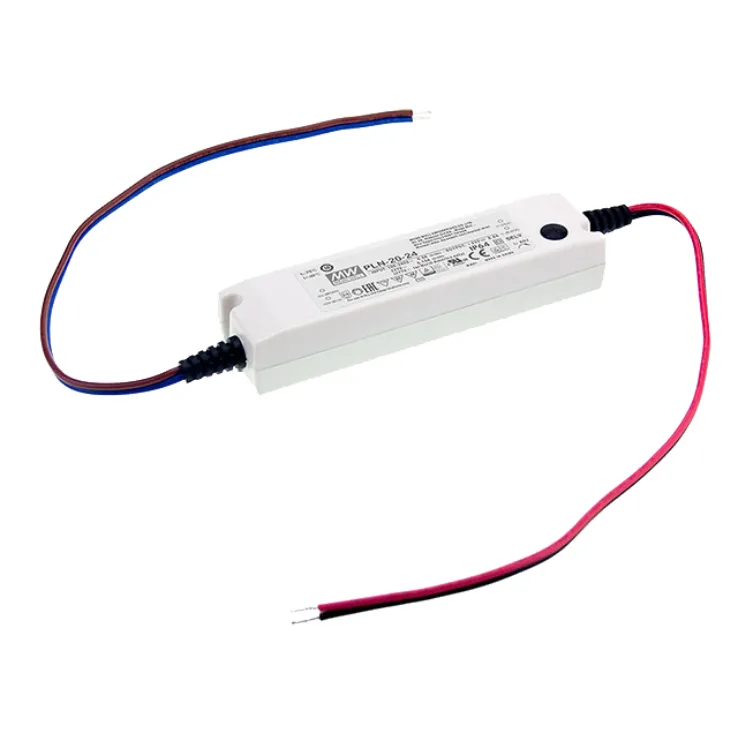

Mean Well PLN-20 Series Non-dim Constant Voltage LED Drivers 20W

Download Datasheet
Models:
  • PLN-20-12
  • PLN-20-18
  • PLN-20-24
  • PLN-20-36
  • PLN-20-48
Manufacturer: Mean Well
Type: Constant Voltage LED Drivers

PLN-20 Series Features:

Built-in constant current limiting circuit (C.V. + C.C. mode)

Fully isolated plastic case with IP64 level

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input / Full Range
  • Built-in active PFC function, PF>0.9 for 75% of load or higher
  • Class 2 power unit/ Pass LPS
  • Isolation class II, no F.G.
  • Current protection level
  • Cooling by free air convection
  • 2 years warranty
Wattage 20 20 20 20 20
Input Voltage 90~277VAC 90~277VAC 90~277VAC 90~277VAC 90~277VAC
Output Voltage 12 18 24 36 48
Output Voltage Options Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A
Dimensions 148.5 x 38.5 x 28 148.5 x 38.5 x 28 148.5 x 38.5 x 28 148.5 x 38.5 x 28 148.5 x 38.5 x 28
Working Temperature -30~+70B0C
Safety Standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
EMC Standards EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
