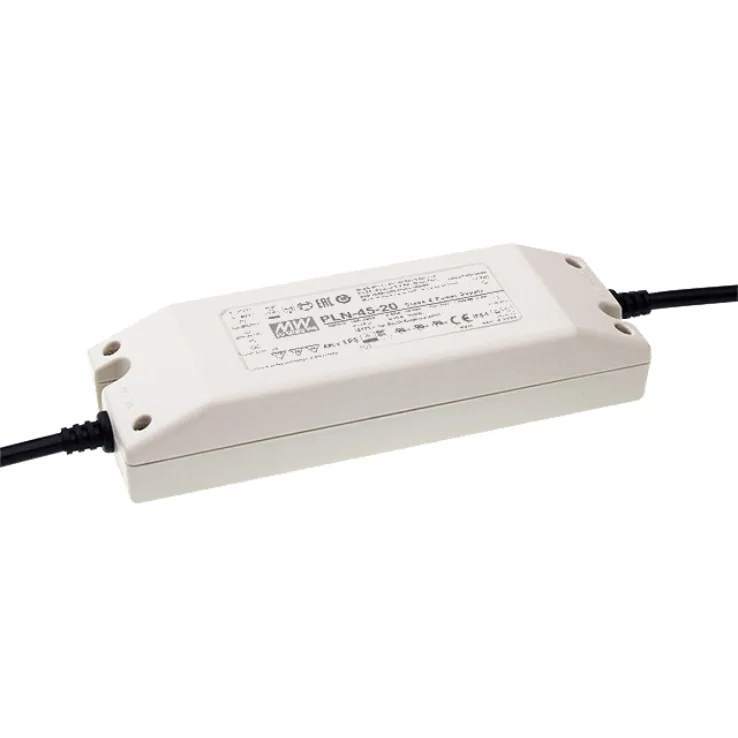

MEAN WELL PLN-45 Series Non-dim Constant Voltage LED Drivers 45W

Models:	PLN-45-12 PLN-45-15 PLN-45-20 PLN-45-24 PLN-45-27 PLN-45-36 PLN-45-48
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

PLN-45 Series Features:

Built-in constant current limiting circuit (C.V. + C.C. mode)

Fully isolated plastic case with IP64 level

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

Spec	PLN-45-12	PLN-45-15	PLN-45-20	PLN-45-24	PLN-45-27	PLN-45-36	PLN-45-48
Wattage	45	45	45	45	45	45	45
Input Voltage	90~295VAC	90~295VAC	90~295VAC	90~295VAC	90~295VAC	90~295VAC	90~295VAC
Output Voltage	12	15	20	24	27	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer	95%~108% rated output voltage adjustable by internal potentiometer
Dimensions	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35	181 x 61.5 x 35
Working Temperature	-30~+50°C
Safety Standards	UL8750, UL1310, UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
EMC Standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
