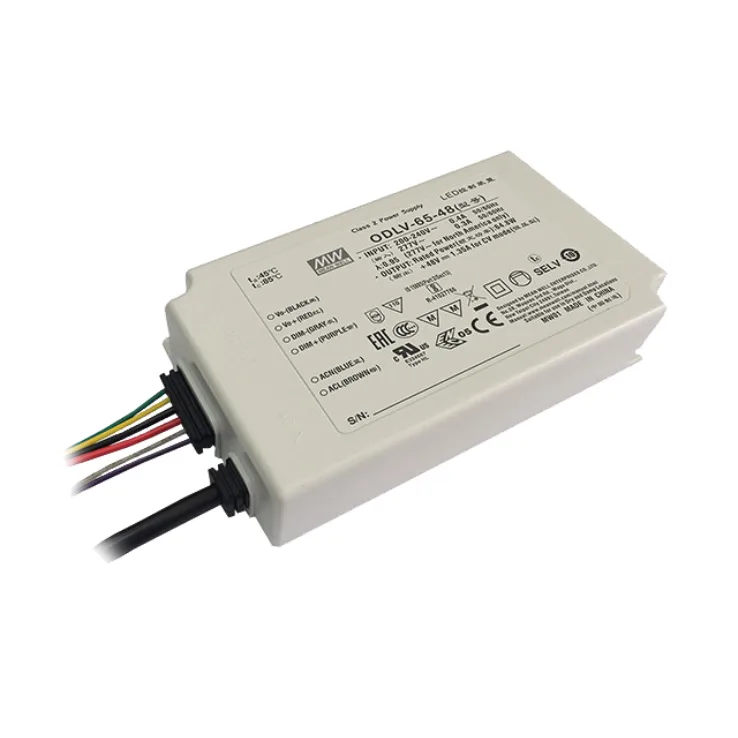

MEAN WELL ODLV-65 Series Constant Voltage LED Drivers 50.4–64.8W

Models:	ODLV-65-12 ODLV-65-24 ODLV-65-36 ODLV-65-48 ODLV-65-60
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

ODLV-65 Series Features:

ODLV-65 series is a 65W AC/DC LED driver featuring the constant voltage mode PWM style design. ODLV-65 series operates from 180~295VAC and offers models with different rated voltage ranging between 12V and 60V.

Features:

Constant voltage PWM style output with frequency 1KHz
Plastic housing with class II design
Built-in active PFC function
No load power consumption -0.5W(blank type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to off);
Auxiliary DC output
3 years warranty

Spec	ODLV-65-12	ODLV-65-24	ODLV-65-36	ODLV-65-48	ODLV-65-60
Wattage	50.4	57.6	64.8	64.8	64.8
Input Voltage	180~295VAC	180~295VAC	180~295VAC	180~295VAC	180~295VAC
Output Current	4.2	2.4	1.8	1.35	1.08
Output Voltage	12	24	36	48	60
Output Voltage Options		0~100%	0~100%	0~100%	0~100%
Dimensions	1217728.5mm (LWH)	1217728.5mm (LWH)	1217728.5mm (LWH)	1217728.5mm (LWH)	1217728.5mm (LWH)
Working Temperature	Tcase=-20~+85°C
Safety Standards	UL8750(type"HL"),CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independant, EN62384,GB19510.1, GB19510.14; BIS IS15885 (for ODLV-65-12,24,48 only), EAC TP TC 004, IP67approved
