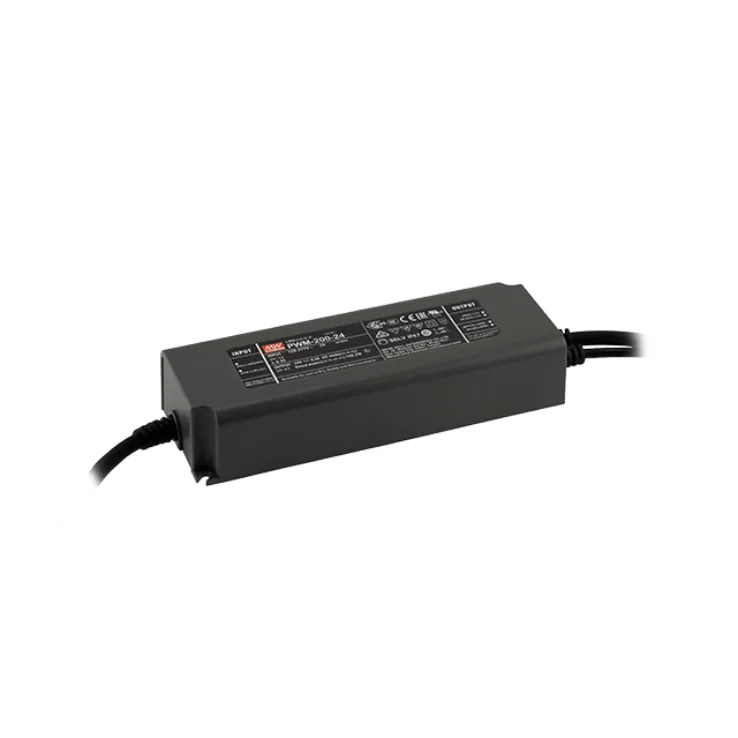

MEAN WELL PWM-200 Series Constant Voltage LED Drivers 180–200.1W

Models:	PWM-200-12 PWM-200-24 PWM-200-36 PWM-200-48
Manufacturer:	MEAN WELL
Type:	Constant Voltage LED Drivers

PWM-200 Series Features:

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips.

Features:

Constant voltage PWM style output with frequency up to 4kHz IEEE1789-2015
Plastic housing with class II and PFC design
Emergency lighting application is available according to IEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options:3 in 1 dimming (dim-to-off and Isolated Design) DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000hrs and 5 years warranty

Spec	PWM-200-12	PWM-200-24	PWM-200-36	PWM-200-48
Wattage	180	199.2	199.8	200.1
Input Voltage	100~305VAC 142~431VDC	100~305VAC 142~431VDC	100~305VAC 142~431VDC	100~305VAC 142~431VDC
Output Current	15A	8.3A	5.55A	4.17A
Output Voltage	12V	24V	36V	48V
Dimensions	1956839.5mm	1956839.5mm	1956839.5mm	1956839.5mm
Working Temperature	-40~80°C
Safety Standards	UL8750 (type "HL"), CSA C22.2 No.250.13-12; ENEC EN61347-1, EN61347-2-13, EN62384 idependent, IP67, EAC TP TC 004, GB19510.1, GB19510.14approved; Design to refer to EN60335-1, According to EN61347-2-13 appendix J suitable for emergency installations
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@>60%); EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
