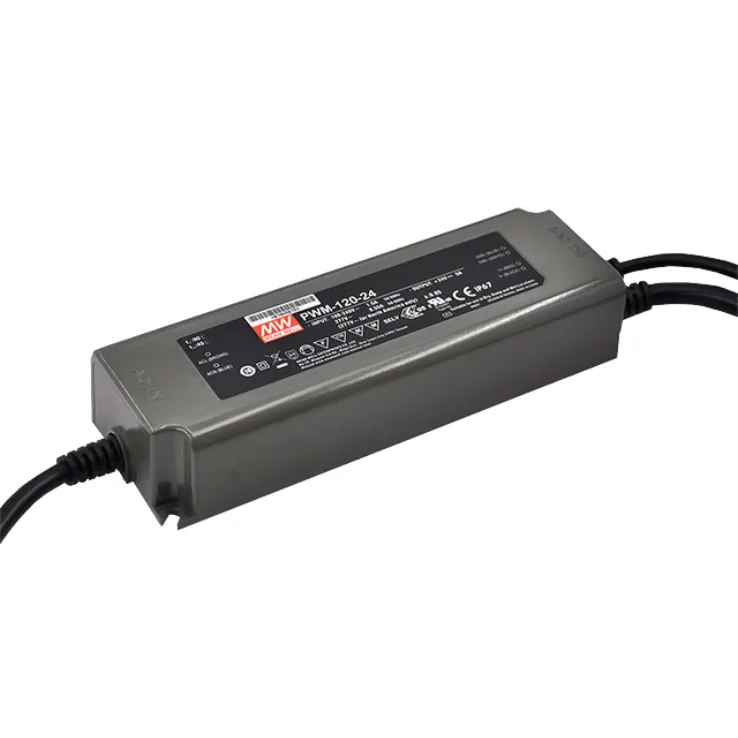

MEAN WELL PWM-120-DA2 Series Constant Voltage LED Drivers 120W

Download Datasheet
Models:
  • PWM-120-12DA2
  • PWM-120-24DA2
Manufacturer: MEAN WELL
Type: Constant Voltage LED Drivers

PWM-120-DA2 Series Features:

PWM-120 DALI 2 series is a DALI Dimmable LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.

Fully compatible with both DALI2 and DALI.

Features:

  • Constant voltage PWM style output
  • Emergency lighting application is available according to IEC61347-2-13
  • Built-in active PFC function and class II design
  • No load power consumption <0.5W/standby power consumption <0.5W(DA/DA2-type)
  • Fully encapsulated with IP67 level
  • Function: 3 in 1 dimming (dim-to-off); DALI/DALI 2.0
  • Minimum dimming level 0.2% for DALI type
  • Typical lifetime >50000 hours and 5 years warranty
Wattage 120 120
Input Voltage 90-305VAC, 127-431VDC 90-305VAC, 127-431VDC
Output Current 10A 5A
Output Voltage 12V 24V
Dimensions 191*63*37.5mm 150x 53x 35
Working Temperature -40~+85°C
Safety Standards UL8750 (typle"HL")(except for DA-type), UL879 (for 12V,24V Blank Type Only), CSA C22.2 NO.250.13-12; ENEC EN61347-1, EN61347-2-13 independant, EN62384, IP67, BIS IS15885 (for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to EN60335-1; According to EN61347-2-13 appendix J suitable for emergency installations
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
