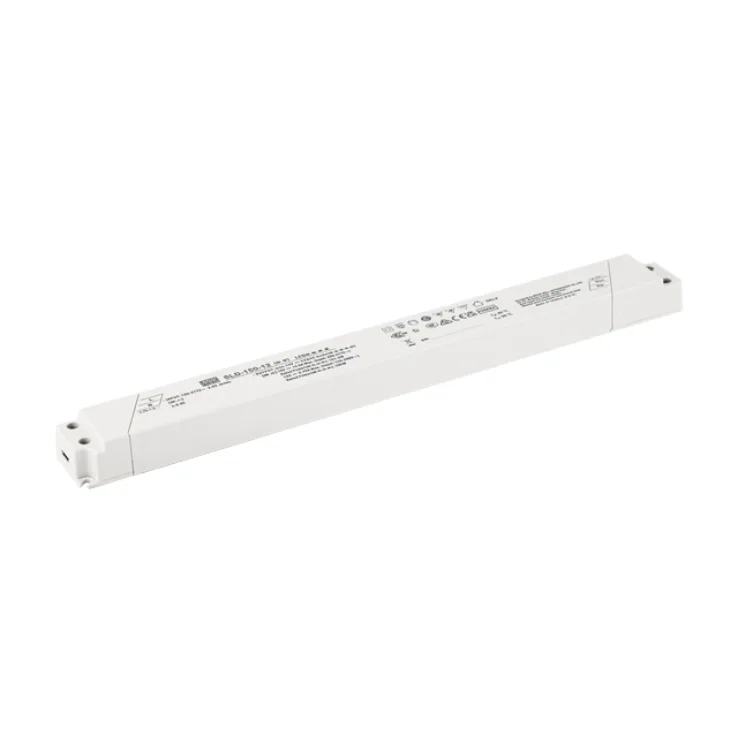

MEAN WELL SLD-150 Series Constant Voltage LED Drivers 144–151.2W

Download Datasheet
Models:
  • SLD-150-12
  • SLD-150-24
Manufacturer: MEAN WELL
Type: Constant Voltage LED Drivers

SLD-150 Series Features:

SLD-150 series is a 150W AC/DC LED driver featuring with dual modes for constant voltage and constant current applications.

Features:

  • Constant Voltage + Constant Current mode output (12/24V)
  • Constant power mode output (56V)
  • Wide input range 120~305VAC with PFC function
  • Compliance with BS EN/EN61347/EN60335-1 regulations
  • Class II power units
  • Slim and compact housing design
  • No load power consumption <0.5W(12/24V)
  • 5 years warranty
Wattage 144 151.2
Input Voltage 120~305VAC 120~305VAC
Output Current 12 6.3
Output Voltage 12 24
Dimensions 330x35x22mm 330x35x22mm
Working Temperature Tcase=-25 ~ +85℃(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety Standards ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN60335-1 EAC TP TC 004, GB19510.1,GB19510.14 approved
EMC Standards BS EN/EN55015(CISPR15)/EN55014, GB/T17743, BS EN/EN61000-3-2 ,GB/T17625.1, BS EN/EN61000-3-3
