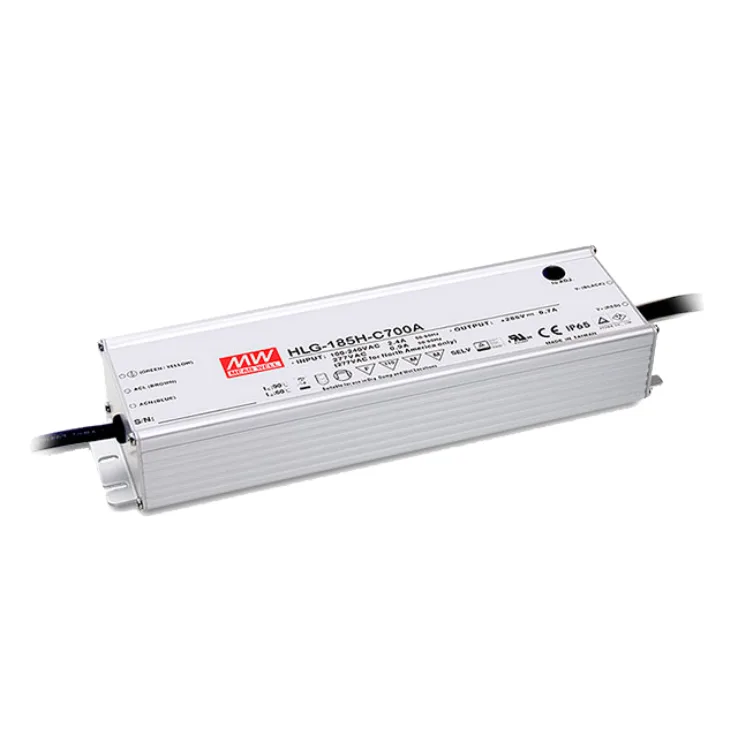

MEAN WELL HLG-185H-CB Series 0-10V Dimmable Constant Current LED Drivers 200W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
HLG-185H-CB Series Features:
Constant current design
Output voltage and C.C level can be adjusted through output cable
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)
- Universal AC input (up to 305VAC) / Full range
- IP67 design for indoor or outdoor installations
- High efficiency up to 94%
- Cooling by free air convection
- Built-in active PFC function
- 7 years warranty
| Wattage | 200 | 200 | 200 | 200 |
|---|---|---|---|---|
| Input Voltage | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC |
| Output Current | 500mA | 700mA | 1050mA | 1400mA |
| Output Voltage Options | Single | Single | Single | Single |
| Dimensions | 228x 68x 38.8 | 228x 68x 38.8 | 228x 68x 38.8 | 228x 68x 38.8 |
| Working Temperature | -40~+70°C (Refer to "Derating Curve") | |||
| Safety Standards | UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved | |||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (B!C | |||
