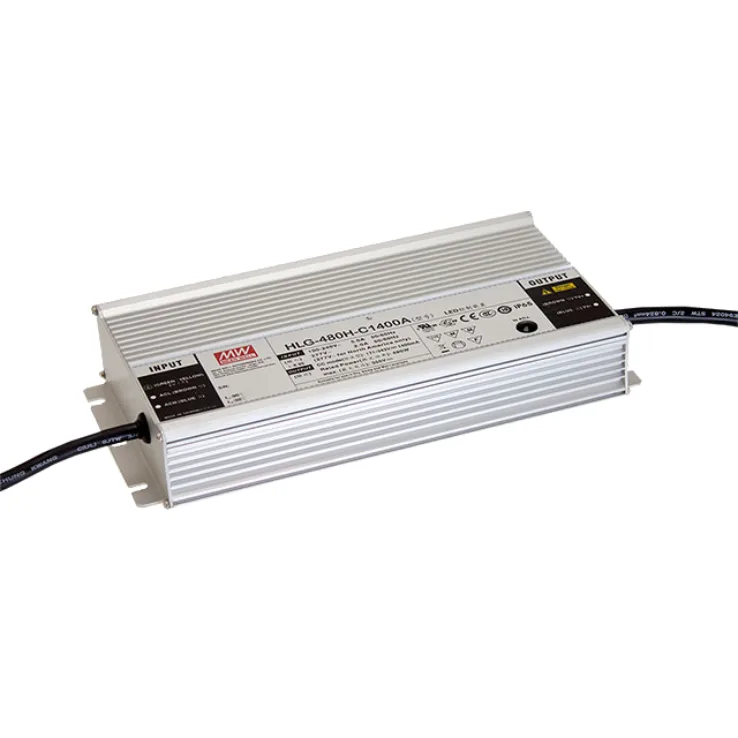

MEAN WELL HLG-480H-CB Series 0-10V Dimmable Constant Current LED Drivers 479–481W

Models:	HLG-480H-C1400B HLG-480H-C1750B HLG-480H-C2100B HLG-480H-C2800B HLG-480H-C3500B
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HLG-480H-CB Series Features:

A Type: Io adjustable through built-in potentiometer and environment adaptiveness

B Type: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptiveness

Constant current design

Protections: Short circuit / Over voltage / Over temperature

Other features:

IP67 / IP65 design for indoor or outdoor installations
Metal housing with class I design
Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
IP67 design for indoor or outdoor installations
Typical lifetime >62000 hours
7 years warranty

Spec	HLG-480H-C1400B	HLG-480H-C1750B	HLG-480H-C2100B	HLG-480H-C2800B	HLG-480H-C3500B
Wattage	480	480	481	479	480
Input Voltage	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC	90-305VAC 127-431VDC
Output Current	1400mA	1750mA	2100mA	2800mA	3500mA
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8	262x 125x 43.8
Working Temperature	-40~+90°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
