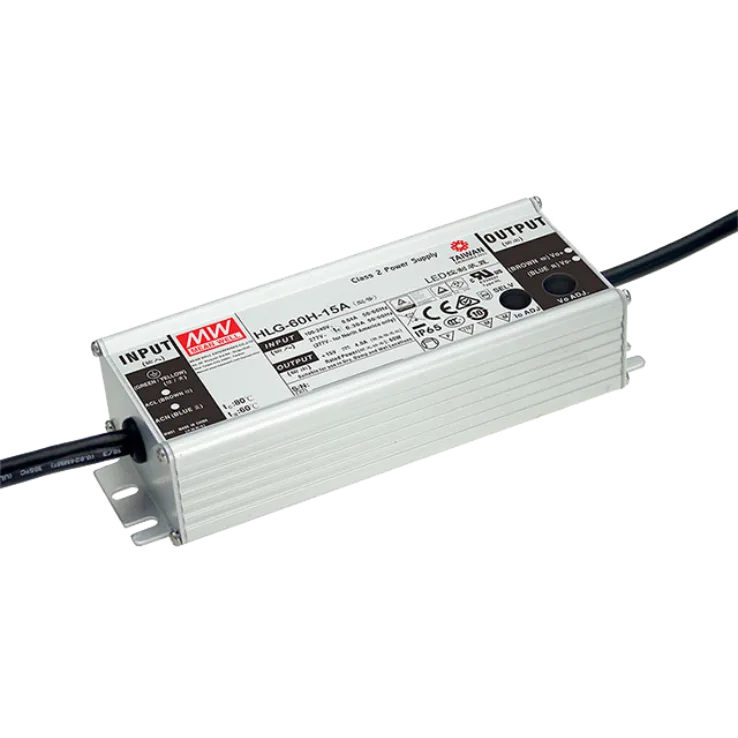

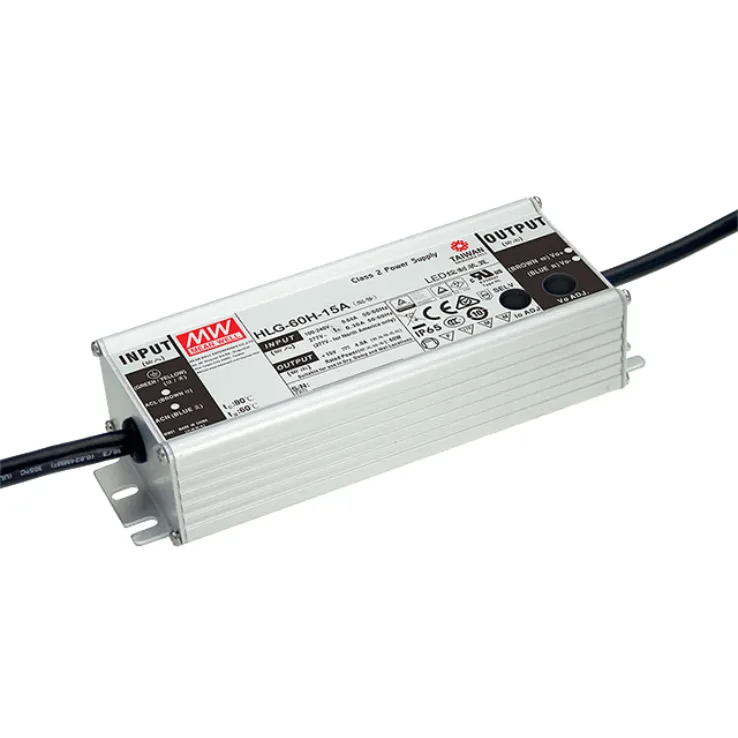

Mean Well HLG-60H-CB Series 0-10V Dimmable Constant Current LED Drivers 60W

Download Datasheet
Models:
  • HLG-60H-C350B
  • HLG-60H-C700B
Manufacturer: Mean Well
Type: Constant Current LED Drivers

HLG-60H-CB Series Features:

Constant current design

Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)

Protections: Short circuit / Over voltage / Over temperature

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • Cooling by free air convection
  • Output current adjustable through output cable
  • IP67 design for indoor or outdoor installations
  • Suitable for dry / damp / wet locations
  • High efficiency up to 91%
  • 7 years warranty
Wattage 60 60
Input Voltage 90~305VAC, 127VDC~431VDC 90~305VAC, 127VDC~431VDC
Output Current 350mA 700mA
Output Voltage Options Single Single
Dimensions 171x 61.5x 36.8 171x 61.5x 36.8
Working Temperature -40~+80°C (refer to output derating curve)
Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (B!C
