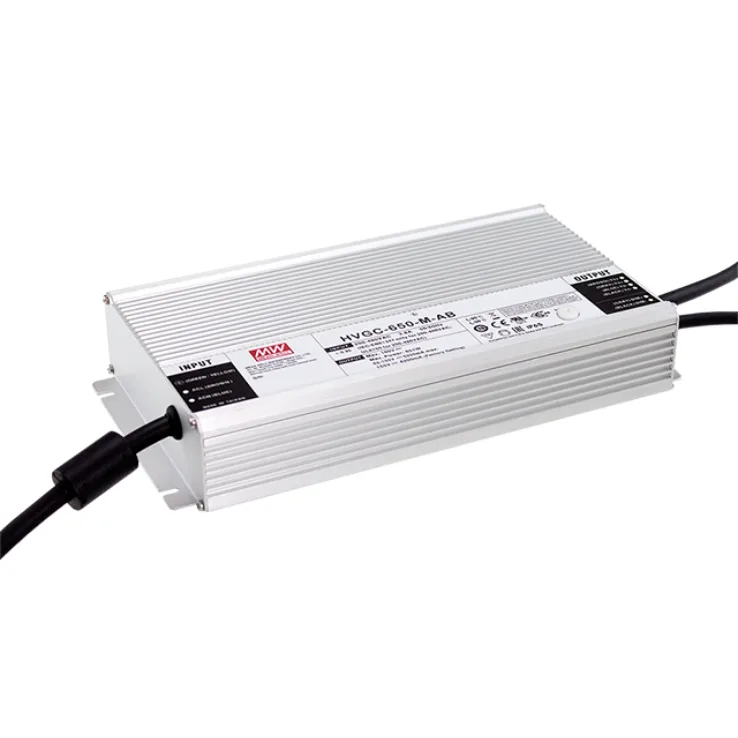

Mean Well HVGC-650-AB Series 0-10V Dimmable Constant Current LED Drivers 650W

Download Datasheet
Models:
  • HVGC-650-L-AB
  • HVGC-650-M-AB
  • HVGC-650-H-AB
  • HVGC-650-U-AB
Manufacturer: Mean Well
Type: Constant Current LED Drivers

HVGC-650-AB Series Features:

Wide input range 180~528VAC

High efficiency up to 91%

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

  • Constant current design
  • Cooling by free air convection
  • Output voltage and CC level can be adjusted through internal potentiometer
  • IP65 design for indoor or outdoor installations
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • 5 years warranty
Wattage 650 650 650 650
Input Voltage 180-528VAC 254VDC-747VDC 180-528VAC 254VDC-747VDC 180-528VAC 254VDC-747VDC 180-528VAC 254VDC-747VDC
Output Current 2800mA 4200mA 5600mA 11200mA
Output Voltage Options Single Single Single Single
Dimensions 280x 144x 48.5 280x 144x 48.5 280x 144x 48.5 280x 144x 48.5
Working Temperature -40~+90°C
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@load>50%); EN61000-3-3, FCC Part 15 Class B, EAC TP TC 020 Compliance to EN61000-4-2,3,4,5,6,8,11 EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020
