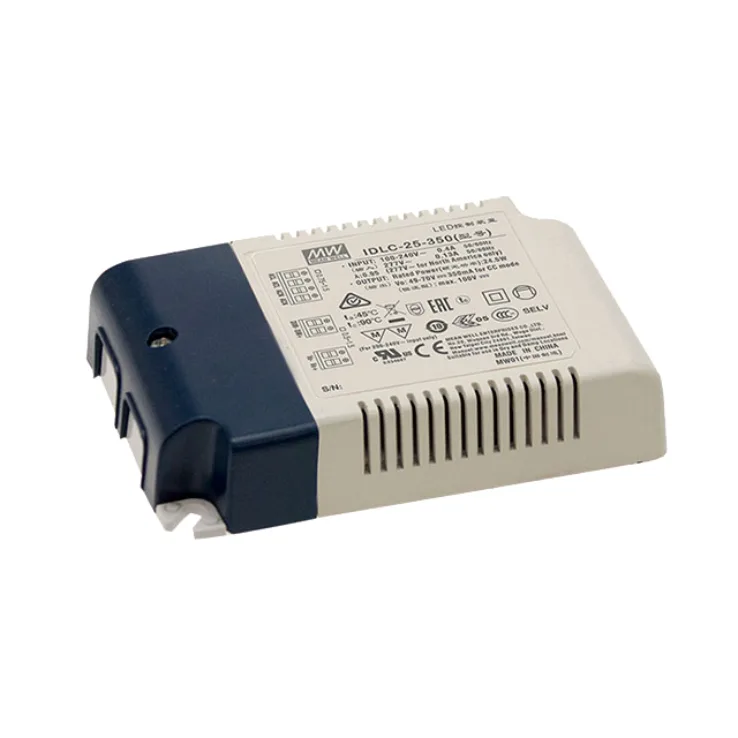

MEAN WELL IDLC-25 Series 0-10V Dimmable Constant Current LED Drivers 25W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
IDLC-25 Series Features:
Constant Current mode output
Flicker free design
Protections: Short circuit
Other features:
- Plastic housing with class II design
- Built-in active PFC function
- No load power consumption <0.5W (Blank-Type)
- Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output
- 3 years warranty
| Wattage | 25 | 25 | 25 | 25 | |
|---|---|---|---|---|---|
| Input Voltage | 90-295VAC | 90-295VAC | 90-295VAC | 90-295VAC | |
| Output Current | 350mA | 500mA | 700mA | 1050mA | |
| Output Voltage Options | Single | Single | Single | Single | |
| DC output adjustment | 49-70V | 35-50V | 25.2-36V | 16.8-24V | |
| Dimensions | 110x 75x 22 | 110x 75x 22 | 110x 75x 22 | 110x 75x 22 | |
| Working Temperature | -20-+90°C | ||||
| Safety Standards | UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved | ||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (>70% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) | Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV) | |||
