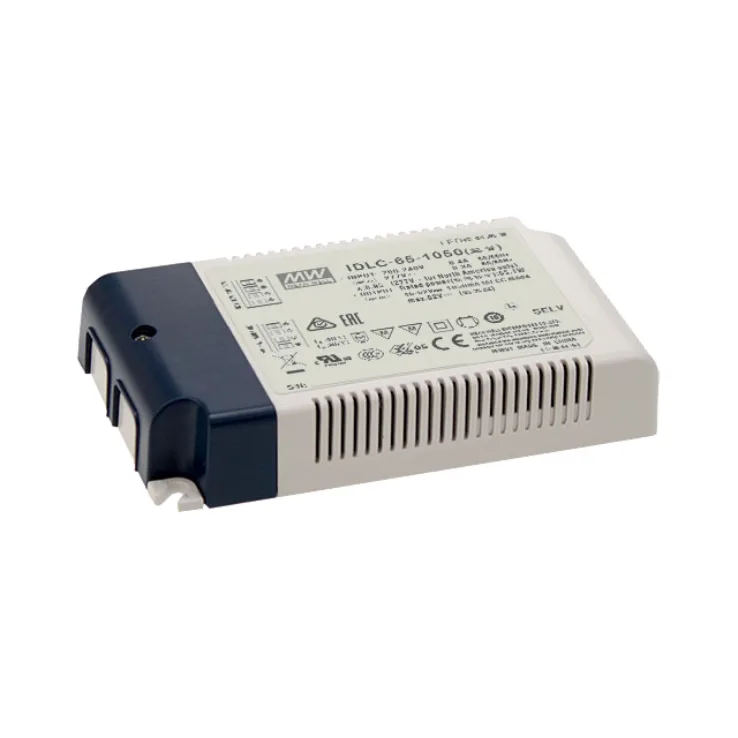

MEAN WELL IDLC-65 Series 0-10V Dimmable Constant Current LED Drivers 65W

Models:	IDLC-65-700 IDLC-65-1050 IDLC-65-1400 IDLC-65-1700
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

IDLC-65 Series Features:

Constant Current mode output

Function options:2 in 1 dimming (dim-to-off); Auxilary DC output

Protections: Short circuit / Overload / Over voltage / Over Temperature

Other features:

Spec	IDLC-65-700	IDLC-65-1050	IDLC-65-1400	IDLC-65-1700
Wattage	65	65	65	65
Input Voltage	180-295VAC	180-295VAC	180-295VAC	180-295VAC
Output Current	700mA	1050mA	1400mA	1750mA
Output Voltage Options	Single	Single	Single	Single
DC output adjustment	69-93V	46-62V	34-46V	27-36V
Dimensions	130x 75x 25	130x 75x 25	130x 75x 25	130x 75x 25
Working Temperature	-20-+85°C
Safety Standards	UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>75% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
