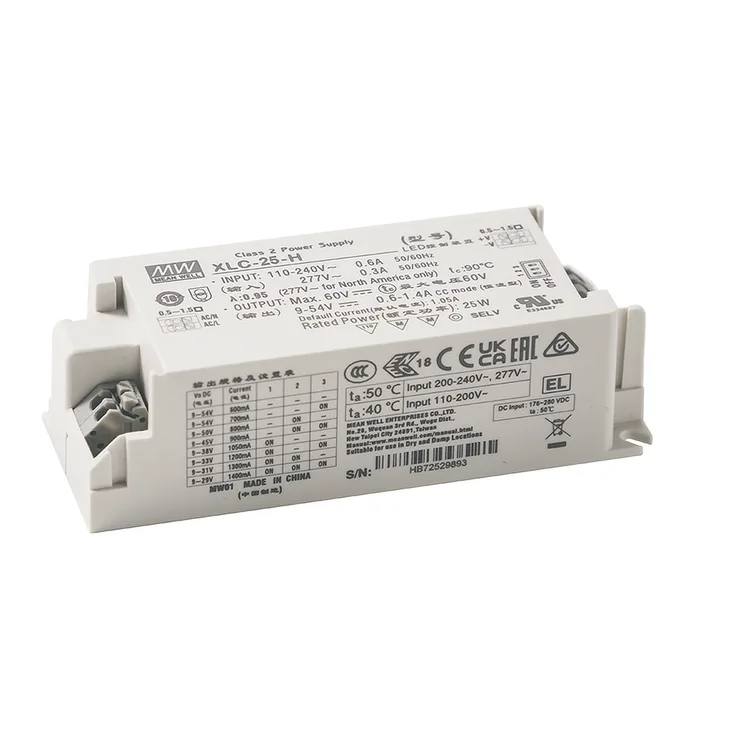

MEAN WELL XLC-25 Series (constant current 0-10v) 0-10V Dimmable Constant Current LED Drivers 25W

Models:	xlc-25-h-b XLC-25-H-BN XLC-25-H-BS XLC-25-H-BSN
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

XLC-25 Series (constant current 0-10v) Features:

XLC-25 Series is a 25W with constant power and constant voltage output LED driver.

Features:
Constant power mode output with multiple stage selectable by dip switch or NFC setting (H-type)
Constant voltage mode output (12V/24V)
Plastic Housing with class II/2 and PFC design
Flicker free, complying with IEEE1789/ErP
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

Spec	XLC-25-H-B	XLC-25-H-BN	XLC-25-H-BS	XLC-25-H-BSN
Wattage	25	25	25	25
Input Voltage	100 ~ 305VAC 141 ~ 431VDC	100 ~ 305VAC 141 ~ 431VDC	100 ~ 305VAC 141 ~ 431VDC	100 ~ 305VAC 141 ~ 431VDC
Output Current	0.3~1.05A	0.3~1.05A	0.3~1.05A	0.3~1.05A
Output Voltage	60V	60V	60V	60V
Dimensions	1074032mm (LWH)	1074032mm (LWH)	1474032mm (LWH)	1474032mm (LWH)
Working Temperature	Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety Standards	ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC Standards	Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load 50%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020, Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 1KV), EAC TP TC 020
