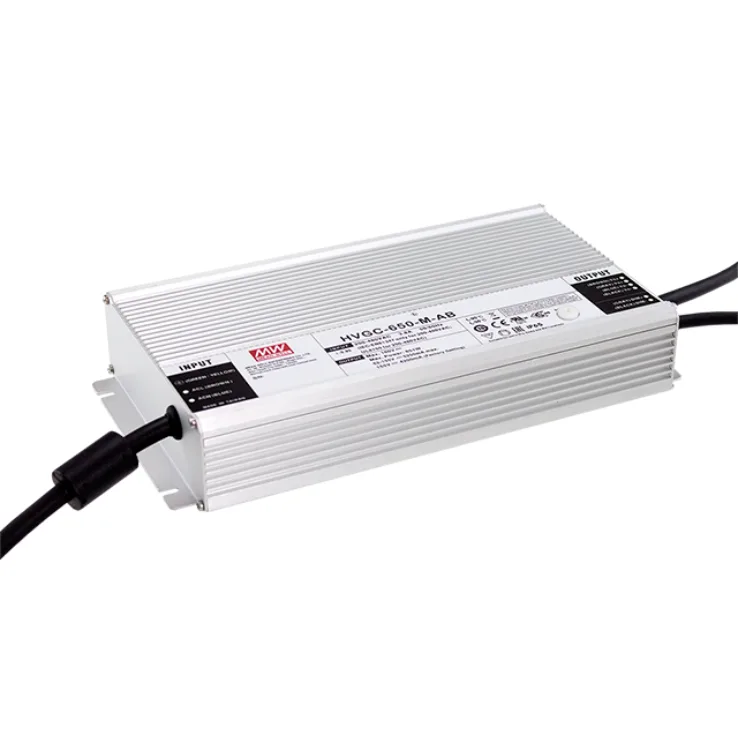

MEAN WELL HVGC-650-DA Series DALI Dimmable Constant Current LED Drivers 650W

Models:	HVGC-650-L-DA HVGC-650-M-DA HVGC-650-H-DA HVGC-650-U-DA
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HVGC-650-DA Series Features:

Wide input range 180~528VAC

High efficiency up to 91%

Built-in active PFC function

Protections: Short circuit / Over current / Over voltage / Over temperature

Other features:

Spec	HVGC-650-L-DA	HVGC-650-M-DA	HVGC-650-H-DA	HVGC-650-U-DA
Wattage	650	650	650	650
Input Voltage	180-528VAC 254VDC-747VDC	180-528VAC 254VDC-747VDC	180-528VAC 254VDC-747VDC	180-528VAC 254VDC-747VDC
Output Current	2800mA	4200mA	5600mA	11200mA
Output Voltage Options	Single	Single	Single	Single
Dimensions	280x 144x 48.5	280x 144x 48.5	280x 144x 48.5	280x 144x 48.5
Working Temperature	-40~+90°C
Safety Standards	UL8750 (typeb
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@load>50%); EN61000-3-3, FCC Part 15 Class B, EAC TP TC 020 Compliance to EN61000-4-2,3,4,5,6,8,11 EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020
