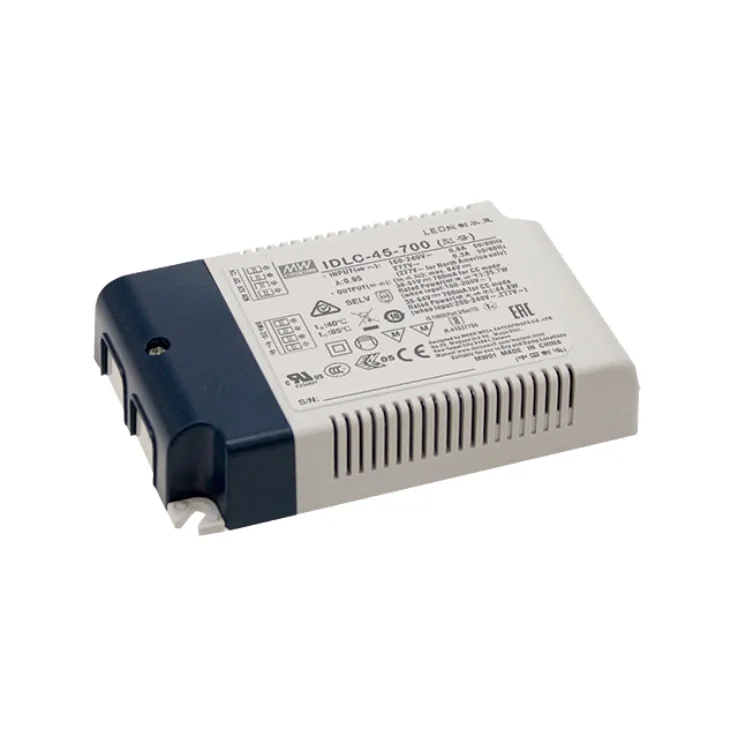

MEAN WELL IDLC-45-DA Series DALI Dimmable Constant Current LED Drivers 33.25–45W

Models:	IDLC-45-350DA IDLC-45-500DA IDLC-45-700DA IDLC-45-1050DA IDLC-45-1400DA
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

IDLC-45-DA Series Features:

Constant Current mode output

DALI Dimmable

Constant Current mode output

Flicker free design

Protections: Short circuit

Other features:

Spec	IDLC-45-350DA	IDLC-45-500DA	IDLC-45-700DA	IDLC-45-1050DA	IDLC-45-1400DA
Wattage	33.25	45	45	45	45
Input Voltage	90-295VAC	90-295VAC	90-295VAC	90-295VAC	90-295VAC
Output Current	350mA	500mA	700mA	1050mA	1400mA
Output Voltage Options	Single	Single	Single	Single	Single
DC output adjustment	57-95V	54-90V	38-64V	26-43V	19-32V
Dimensions	120x 75x 25	120x 75x 25	120x 75x 25	120x 75x 25	120x 75x 25
Working Temperature	-20-+85°C
Safety Standards	UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13 independent, EN62384, GB19510.1,GB19510.14 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
