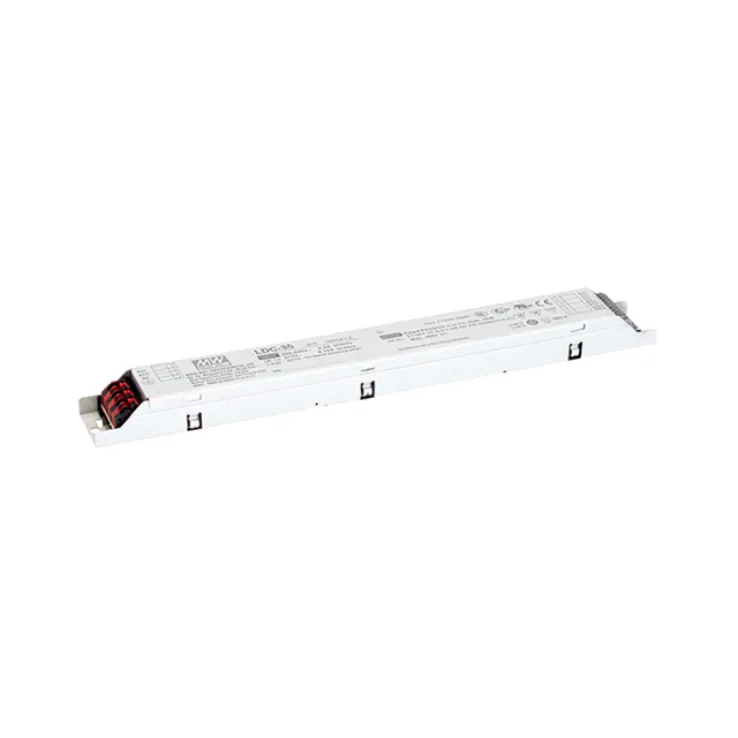

Mean Well LDC-35 Series DALI Dimmable Constant Current LED Drivers 35W

Download Datasheet
Models:
  • LDC-35
  • LDC-35B
  • LDC-35DA
Manufacturer: Mean Well
Type: Constant Current LED Drivers

LDC-35 Series Features:

Constant Current mode output

Flicker free design

Protections: Short circuit

Other features:

  • Metal housing design
  • Full Power at 70~100% max current
  • Built-in active PFC function
  • Function options : 3 in 1 dimming (dim-to-off); DALI interface, push dimming
  • Typical lifetime >50000 hours
  • SELV and Isolated
  • 5 years warranty
Wattage 35 35 35
Input Voltage 180-295VAC 180-295VAC 180-295VAC
Output Current 300-1000mA 300-1000mA 300-1000mA
Output Voltage Options Single Single Single
DC output adjustment 27-56V 27-56V 27-56V
Dimensions 280x 30x 21 280x 30x 21 280x 30x 21
Working Temperature -25-+80°C
Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13, EN62384; GB19510.14,GB19510.1 approved DALI Standards Compliance to IEC62386-101.102.207 for DA-Type only
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>50% load);EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity:Line-Line:1KV)
