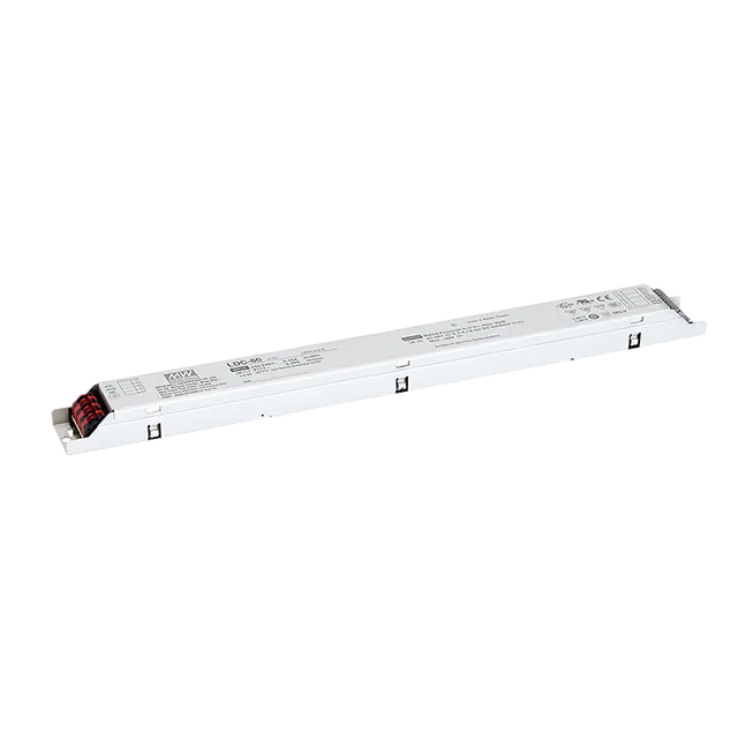

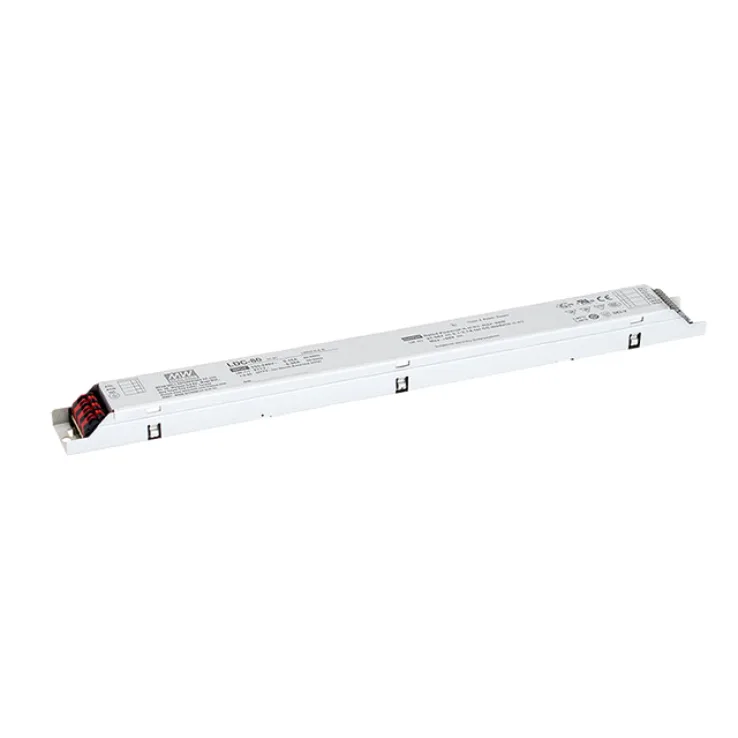

Mean Well LDC-80 Series DALI Dimmable Constant Current LED Drivers 80W

Download Datasheet
Models:
  • LDC-80
  • LDC-80B
  • LDC-80DA
Manufacturer: Mean Well
Type: Constant Current LED Drivers

LDC-80 Series Features:

Constant Current mode output

Flicker free design


Protections: Short circuit / Over voltage / Over temperature

Other features:

  • Metal housing design
  • Full Power at 70~100% max current
  • Built-in active PFC function
  • Function options : 3 in 1 dimming (dim-to-off); DALI interface, push dimming
  • Typical lifetime >50000 hours
  • SELV and Isolated
  • 5 years warranty
Wattage 80 80 80
Input Voltage 180-295VAC 180-295VAC 180-295VAC
Output Current 700-2100mA 700-2100mA 700-2100mA
Output Voltage Options Single Single Single
DC output adjustment 27-56V 27-56V 27-56V
Dimensions 360x 30x 21 360x 30x 21 360x 30x 21
Working Temperature -25-+85°C
Safety Standards UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13,AS/NZS 61347.1:2016, AS.NZS IEC 61347.2.13:2013;EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved UL8750,CSA C22.2 NO.250.13-12; ENEC EN61347-1 & EN61347-2-13,AS/NZS 61347.1:2016, AS.NZS IEC 61347.2.13:2013;EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved DALI Standards Compliance to IEC62386-101.102.207 for DA-Type only
EMC Standards Compliance to EN55015,EN61000-3-2 Class C (@load>50%) ; EN61000-3-3;GB/T17743,GB17625.1, EAC TP TC 020, Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Earth:2KV,Line-Line:1KV) Criteria A, EAC TP TC 020
