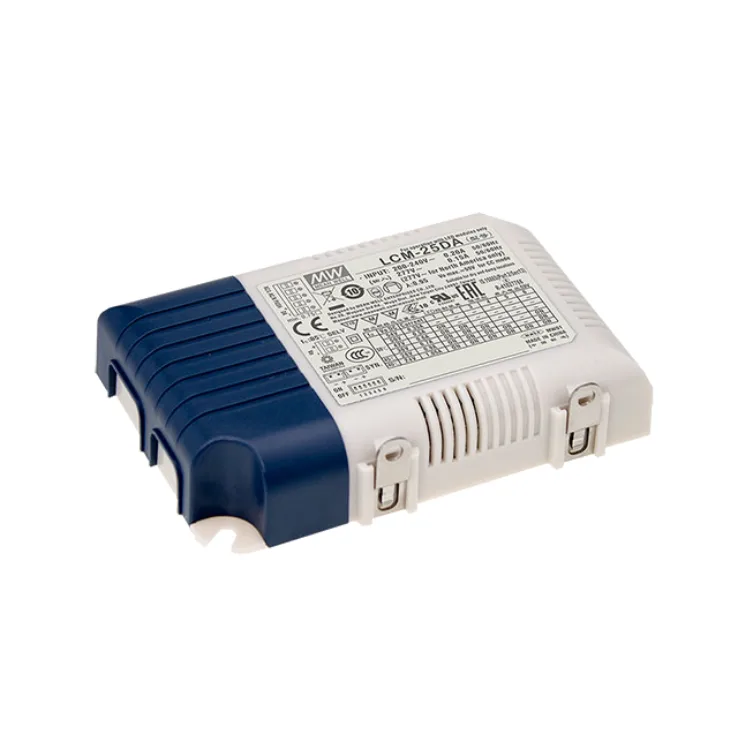

MEAN WELL LCM-25DA2 Series Constant Current LED Drivers

Models:	LCM-25DA2
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

LCM-25DA2 Series Features:

LCM-DA2 series is an AC/DC constant current mode output LED driver featuring the multiple levels selectable by dip switch and the DALI interface with the compliance to IEC62386.

Fully DALI 2 and 1 compatible.

Features:

Constant current mode output with multiple levels selectable by dip switch
Emergency lighting application is available according to IEC61347-2-13
Built in active PFC function and class II design
Standby power consumption <0.5W
Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming synchronization up to 10 units
3 years warranty

Spec	LCM-25DA2
Working Temperature	-30~+85°C
Safety Standards	UL8750(except for DA2-type), CSA C22.2 NO.250.0-08, ENEC EN61347-1, EN61347-2-13, EN62384 independant, GB19510.14, GB19510.1, BIS IS15885(except for DA2-type), EAC TP TC 004 approved, According to EN61347-2-13 appendix J suitable for emergency installations
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (@load>50%) ; EN61000-3-3; GB17625.1, GB17743, EAC TP TC 020
