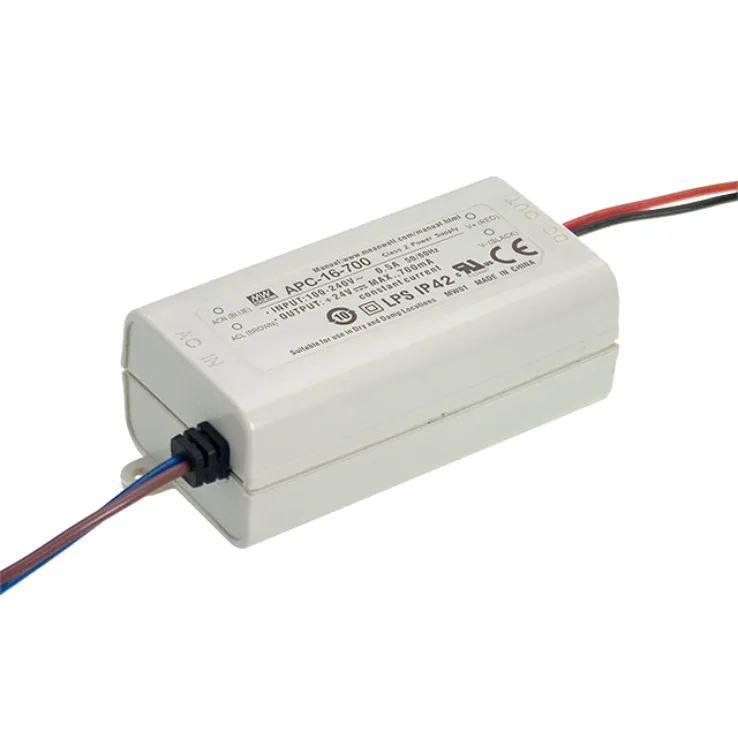

MEAN WELL APC-16 Series Non-dim Constant Current LED Drivers 16W

Download Datasheet
Models:
  • APC-16-350
  • APC-16-700
Manufacturer: MEAN WELL
Type: Constant Current LED Drivers

APC-16 Series Features:

Constant Current

Fully isolated plastic case

Protections: Short circuit/ Over voltage

Other features:

  • Universal AC input / Full Range
  • Small and compact size
  • Isolation class II, no FG
  • Cooling by free air convection
  • Pass LPS
  • 100% full load burn-in test
  • Low cost, High reliability
  • 2 years warranty
Wattage 16 16
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 350mA 700mA
Output Voltage Options Single Single
Dimensions 77 x 40 x 29 77 x 40 x 29
Working Temperature -30~+70°C (Refer to "Derating Curve")
Safety Standards Design refer to TUV EN60950-1, EN61347-2-13, UL8750
EMC Standards EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
