MEAN WELL

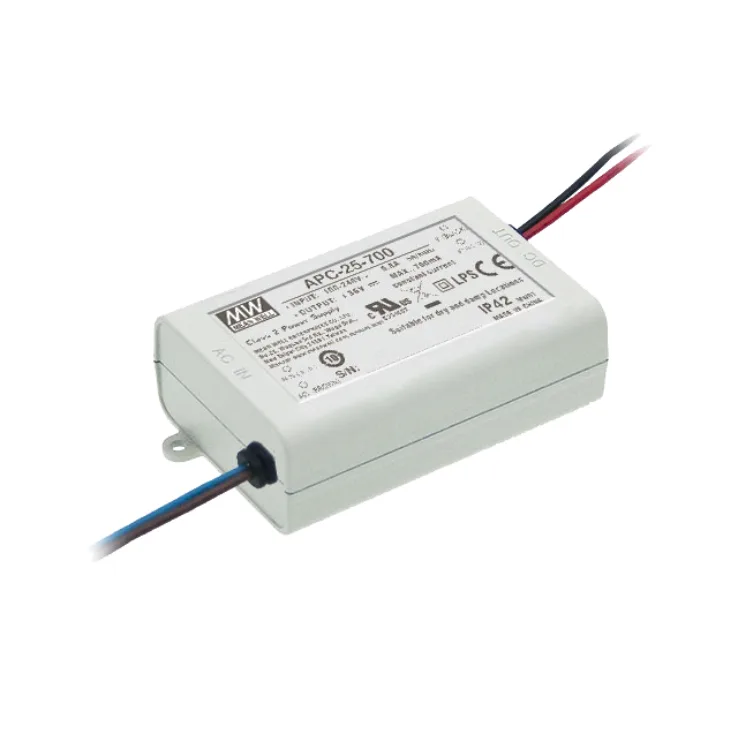

MEAN WELL APC-25 Series Non-dim Constant Current LED Drivers 25–35W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
APC-25 Series Features:
Constant Current
Fully isolated plastic case
Protections: Short circuit/ Overload/ Over voltage
Other features:
- Universal AC input / Full Range
- Small and compact size
- Withstand 300VAC surge input for 5 seconds
- Isolation class II, no FG
- Cooling by free air convection
- Pass LPS
- 100% full load burn-in test
- Low cost, High reliability
- 2 years warranty
| Wattage | 25 | 25 | 25 | 35 |
|---|---|---|---|---|
| Input Voltage | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC |
| Output Current | 350mA | 500mA | 700mA | 1050mA |
| Output Voltage Options | Single | Single | Single | Single |
| Dimensions | 84x 57x 29.5 | 84x 57x 29.5 | 84x 57x 29.5 | 84x 57x 29.5 |
| Working Temperature | -30~+70°C (Refer to "Derating Curve") | |||
| Safety Standards | Design refer to EN60950-1, UL8750 | |||
| EMC Standards | EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A | |||
