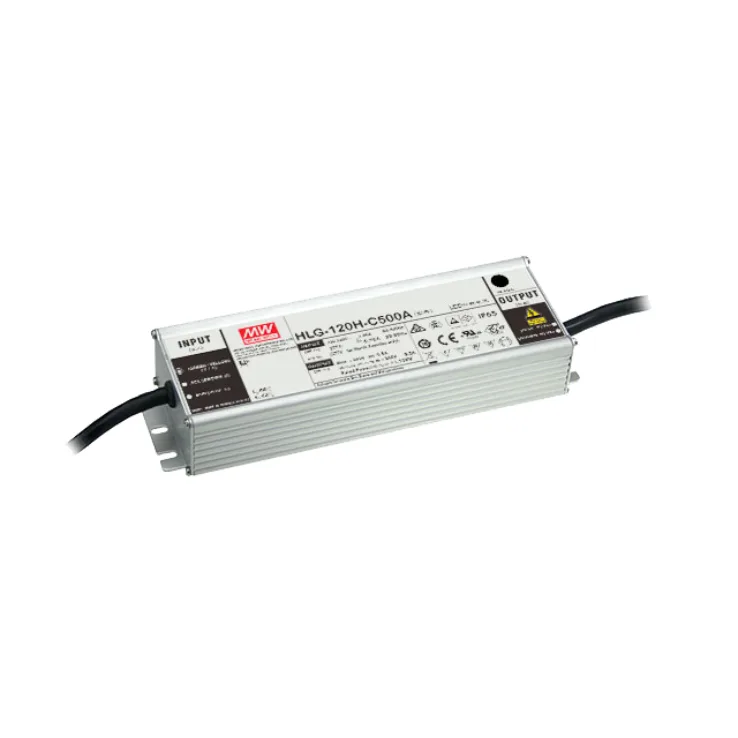

MEAN WELL HLG-120H-CA Series Non-dim Constant Current LED Drivers 150W

Models:	HLG-120H-C350A HLG-120H-C500A HLG-120H-C700A HLG-120H-C1050A HLG-120H-C1400A
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HLG-120H-CA Series Features:

Constant current design

Three in one dimming function (1~10Vdc or PWM signal or resistance)

Protections: Short circuit/ Over voltage/ Over temperature

Spec	HLG-120H-C350A	HLG-120H-C500A	HLG-120H-C700A	HLG-120H-C1050A	HLG-120H-C1400A
Wattage	150	150	150	150	150
Input Voltage	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC	90 ~ 305VAC, 127~431VDC
Output Current	350mA	500mA	700mA	1050mA	1400mA
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8	220x 68x 38.8
Working Temperature	-40~+70°C
Safety Standards	UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13, EN62384 independent, IP65 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C (b '50% load) ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A
