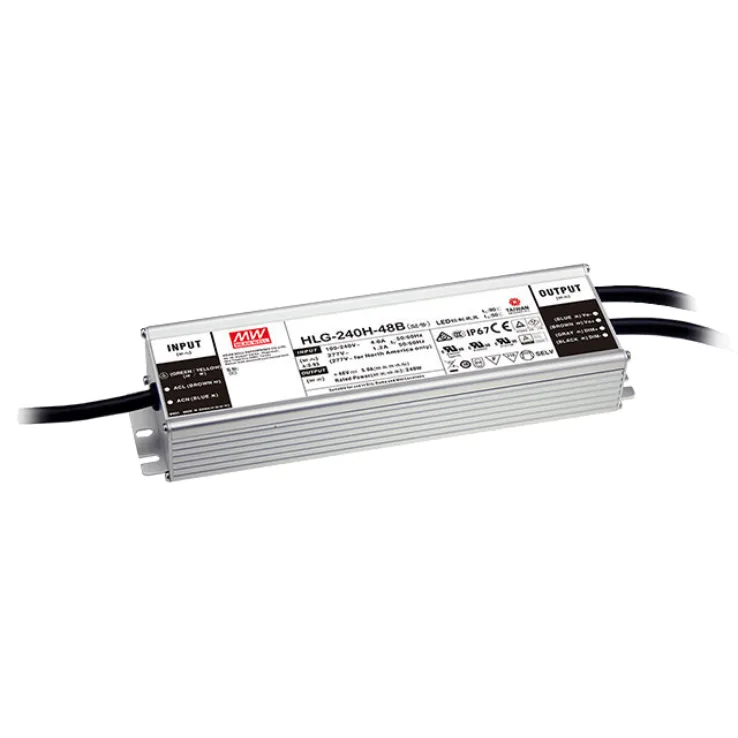

MEAN WELL HLG-240H-B Series Non-dim Constant Current LED Drivers 192–240W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
HLG-240H-B Series Features:
Built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
IP67 design for indoor or outdoor installations
Protections: Short circuit / Over current / Over voltage / Over temperature
Other features:
- Universal AC input (up to 305VAC) / Full range
- High efficiency up to 95%
- Output current adjustable through output cable or internal potentiometer
- Cooling by free air convection
- Suitable for LED lighting and street lighting applications
- Meet 4KV surge immunity level (IEC61000-4-5)
- Multiple models for choice:
- Built-in active PFC function, PF>0.9 for 60% of load or higher
- 7 years warranty
| Wattage | 192 | 240 | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC | 90~305VAC, 127~431VDC |
| Output Voltage | 12 | 15 | 20 | 24 | 30 | 36 | 42 | 48 | 54 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage | +/-6% rated output voltage |
| Dimensions | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 | 244.2 x 68 x 38.8 |
| Working Temperature | -40~+70°C (Refer to "Derating Curve") | ||||||||
| Safety Standards | UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, UL1012, UL60950-1, TUV EN60950-1 | ||||||||
| EMC Standards | EN55015, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 | ||||||||
