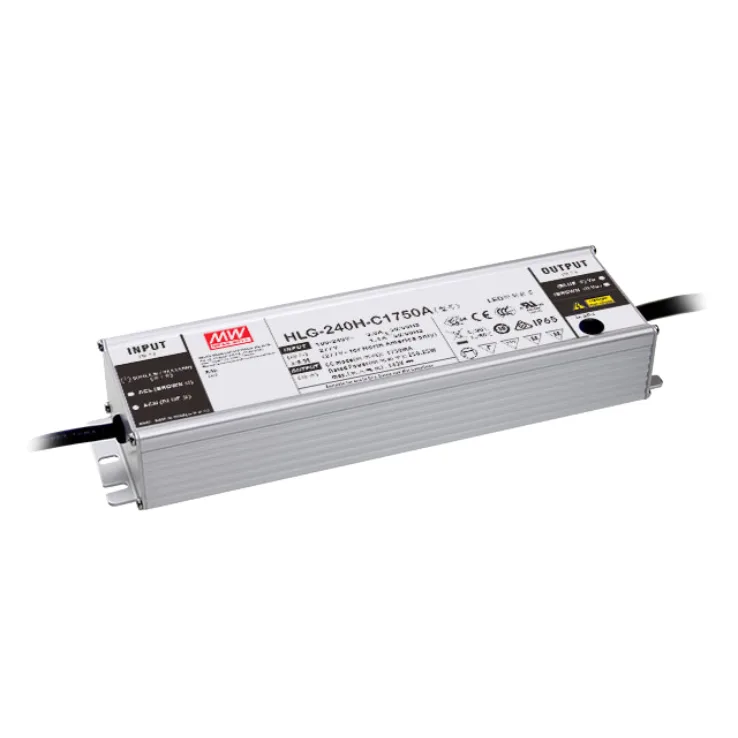

Mean Well HLG-240H-CA Series Non-dim Constant Current LED Drivers 250W

Download Datasheet
Models:
  • HLG-240H-C700A
  • HLG-240H-C1050A
  • HLG-240H-C1400A
  • HLG-240H-C1750A
  • HLG-240H-C2100A
Manufacturer: Mean Well
Type: Constant Current LED Drivers

HLG-240H-CA Series Features:

Constant current design

Metal housing with class I design

Protections: Short circuit / Over voltage / Over temperature

Other features:

  • IP67 / IP65 design for indoor or outdoor installations
  • Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
  • IP67 design for indoor or outdoor installations
  • Typical lifetime >62000 hours
  • 7 years warranty
Wattage 250 250 250 250 250
Input Voltage 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC 90-305VAC 127-431VDC
Output Current 700mA 1050mA 1400mA 1750mA 2100mA
Output Voltage Options Single Single Single Single Single
Dimensions 244.2x 68x 38.8 244.2x 68x 38.8 244.2x 68x 38.8 244.2x 68x 38.8 244.2x 68x 38.8
Working Temperature -40~+90°C (Refer to b_x001C_Derating Curveb_x001D_)
Safety Standards UL8750 (typeb
EMC Standards Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
