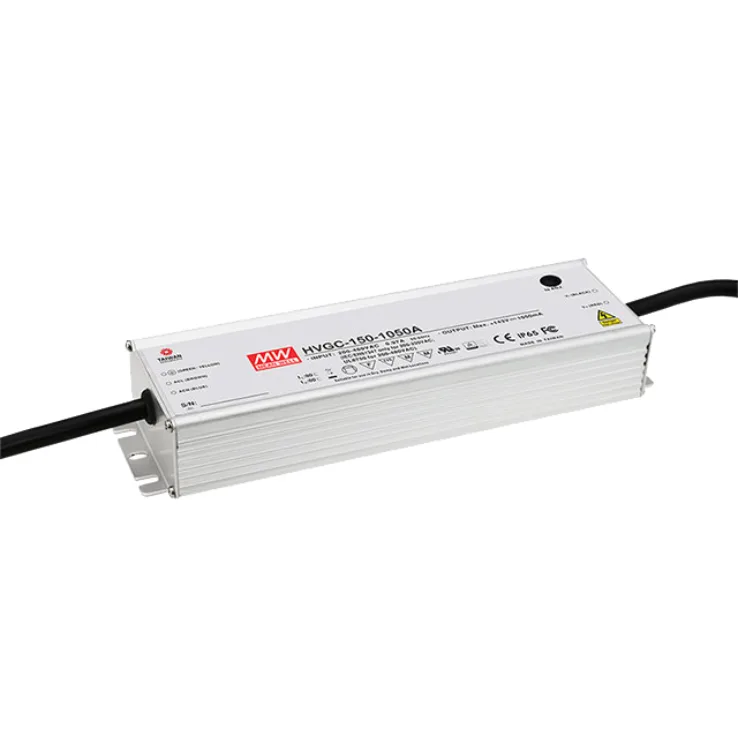

MEAN WELL HVGC-150-A Series Non-dim Constant Current LED Drivers 150W

Models:	HVGC-150-350A HVGC-150-500A HVGC-150-700A HVGC-150-1050A HVGC-150-1400A
Manufacturer:	MEAN WELL
Type:	Constant Current LED Drivers

HVGC-150-A Series Features:

Constant current design

Wide input range 180~528VAC

Three in one dimming function (0~10Vdc or 10V PWM signal or resistance)

Protections: Short circuit/ Over current/ Over voltage/ Over temperature

Other features:

Spec	HVGC-150-350A	HVGC-150-500A	HVGC-150-700A	HVGC-150-1050A	HVGC-150-1400A
Wattage	150	150	150	150	150
Input Voltage	180~528VAC 254VDC~747VDC	180~528VAC 254VDC~747VDC	180~528VAC 254VDC~747VDC	180~528VAC 254VDC~747VDC	180~528VAC 254VDC~747VDC
Output Current	350mA	500mA	700mA	1050mA	1400mA
Output Voltage Options	Single	Single	Single	Single	Single
Dimensions	245x 68x 38.8	245x 68x 38.8	245x 68x 38.8	245x 68x 38.8	245x 68x 38.8
Working Temperature	-30~+70°C (Refer to "Derating Curve")
Safety Standards	UL8750, CSA C22.2 No. 250.0-08, IP65 approved
EMC Standards	Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A
