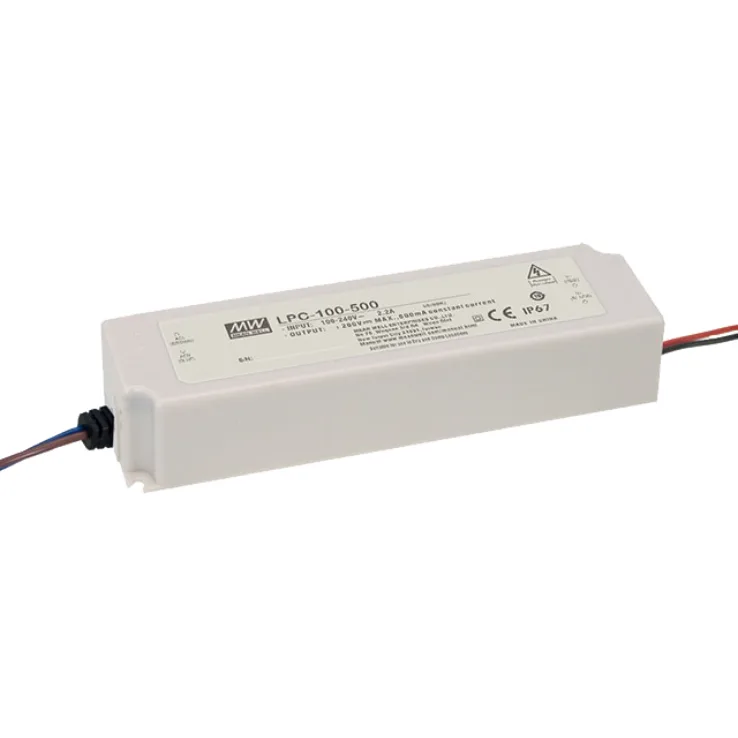

Mean Well LPC-100 Series Non-dim Constant Current LED Drivers 100–101.5W

Download Datasheet
Models:
  • LPC-100-350
  • LPC-100-500
  • LPC-100-700
  • LPC-100-1050
  • LPC-100-1400
  • LPC-100-1750
  • LPC-100-2100
Manufacturer: Mean Well
Type: Constant Current LED Drivers

LPC-100 Series Features:

Constant current design

Protections: Short circuit / Over voltage

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • High efficiency up to 90%
  • Cooling by free air convection
  • Fully encapsulated with IP67 level
  • Fully isolated plastic case
  • Class II power unit
  • 100% full load burn-in test
  • Low Cost, High reliability
  • 2 years warranty
Wattage 100.1 100 100.1 100.8 100.8 101.5 100.8
Input Voltage 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC 90-264VAC
Output Current 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment 143-286V 100-200V 72-143V 48-96V 36-72V 29-58V 24-48V
Dimensions 190x 52x 37 190x 52x 37 190x 52x 37 190x 52x 37 190x 52x 37 190x 52x 37 190x 52x 37
Working Temperature -25-+50°C
Safety Standards IP67 approved, Design refer to TUV EN60950-1
EMC Standards Compliance to EN55022 (CiSPR22) Class B; EN61000-3-2 Class A(<80% load); EN61000-3-3. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A.
