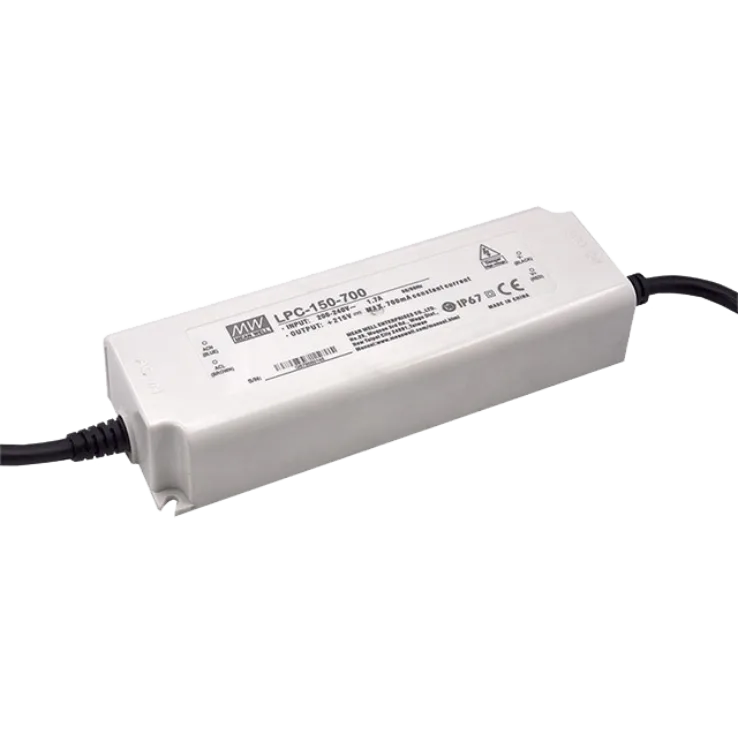

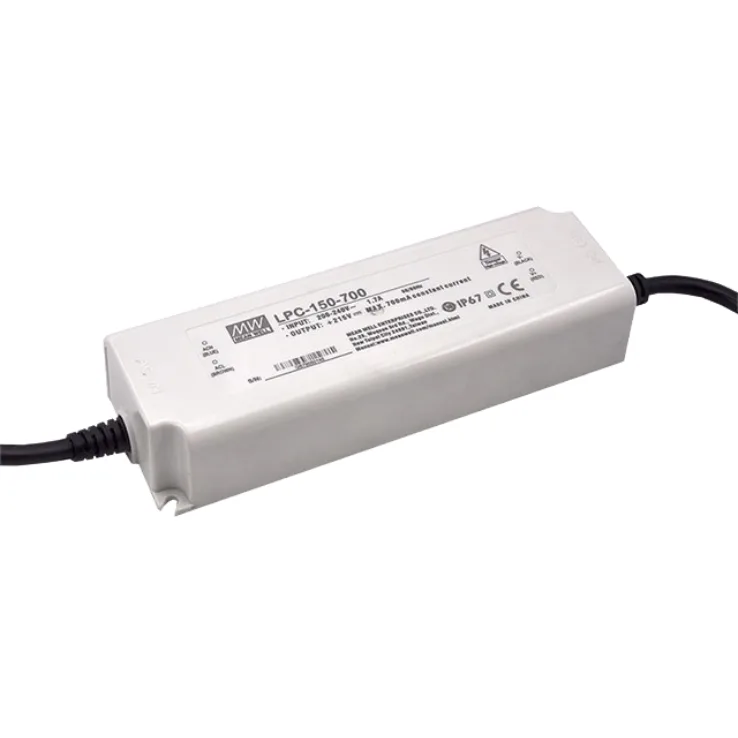

Mean Well LPC-150 Series Non-dim Constant Current LED Drivers 150–151.9W

Download Datasheet
Models:
  • LPC-150-350
  • LPC-150-500
  • LPC-150-700
  • LPC-150-1050
  • LPC-150-1400
  • LPC-150-1750
  • LPC-150-2100
  • LPC-150-2450
  • LPC-150-2800
  • LPC-150-3150
Manufacturer: Mean Well
Type: Constant Current LED Drivers

LPC-150 Series Features:

Constant current design

Protections: Short circuit / Over voltage / Over temperature

  • High efficiency up to 90%
  • Cooling by free air convection
  • Fully encapsulated with IP67 level
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Suitable for LED lighting and moving sign application
  • 100% full load burn-in test
  • Low Cost, High reliability
  • 2 years warranty
Wattage 150.5 150 150.5 151.2 151.2 150.5 151.2 151.9 151.2 151.2
Input Voltage 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC 180-305VAC
Output Current 350mA 500mA 700mA 1050mA 1400mA 1750mA 2100mA 2450mA 2800mA 3150mA
Output Voltage Options Single Single Single Single Single Single Single Single Single Single
DC output adjustment 215-430V 150-300V 107-215V 72-144V 54-108V 43-86V 36-72V 31-62V 27-54V 24-48V
Dimensions 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5 191x 63x 37.5
Working Temperature -25-+50°C
Safety Standards IP67 approved, refer to EN60950-1
EMC Standards Compliance to EN55022(CISPR22) Class B; EN61000-3-2 Class A (<80% load); EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
