MEAN WELL

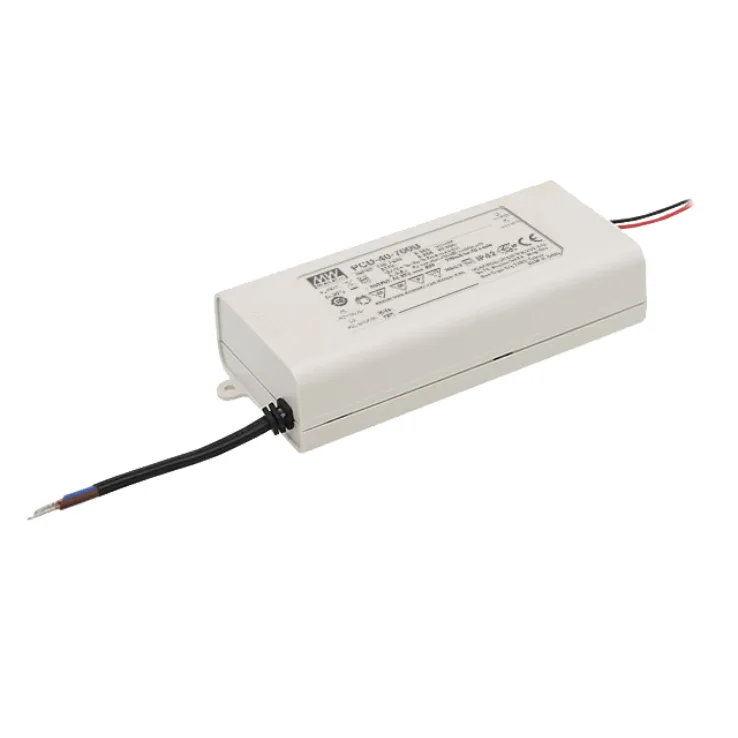

MEAN WELL PLD-60 Series Non-dim Constant Current LED Drivers 58–60W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Constant Current LED Drivers |
PLD-60 Series Features:
180~295VAC input
Built-in active PFC function
Protections: Short circuit/ Over temperature
Other features:
- Constant current design
- Fully isolated plastic case
- IP30 design
- Class 2 power unit/ Pass LPS
- Isolation class II, no F.G.
- 100% full burn-in test
- Cooling by free air convection
- 3 years warranty
| Wattage | 58 | 60 | 60 | 60 | 60 | 60 | 60 | |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | 180~295VAC | |
| Output Current | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2000mA | 2400mA | |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |
| DC output adjustment | 18~30 | 15~25 | ||||||
| Dimensions | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | 128x 60x 31.5 | |
| Working Temperature | -30~+50°C (Refer to "Derating Curve") | |||||||
| Safety Standards | UL8750, ENEC EN61347-1, EN61347-2-13 independent, IP30 approved | UL8750, CSA C22.2 No. 250.0-08(except for PCD-60-500~1750); ENEC EN61347-1, EN61347-2-13 independent, IP30 approved | ||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge 4KV), criteria A | |||||||
