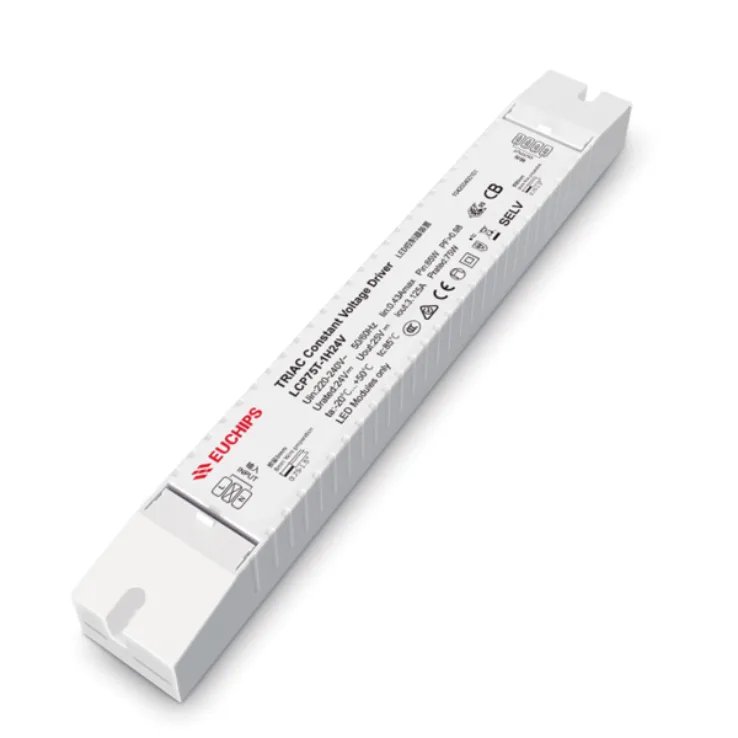

LCP Series TRIAC Dimmable Constant Voltage LED Drivers

Download Datasheet
Models:
  • LCP75T-1H24V
Type: Constant Voltage LED Drivers

LCP Series Features:

The EUChips LCP Series is a range of constant-voltage LED drivers designed for smooth and reliable dimming in indoor LED lighting applications. Supporting both leading-edge (TRIAC) and trailing-edge (ELV) phase-cut dimming, the series is compatible with a wide range of dimming systems. LCP drivers combine smooth, flicker-free dimming, high efficiency and built-in protection features, making them well suited for constant-voltage LED strip and linear lighting applications.

Wattage 75
Input Voltage 220VAC-240VA
Output Current 3.125A
Output Voltage 24VDC
Output Voltage Options Single
Dimensions 295*40*32mm(L*W*H)
Working Temperature -20℃~50℃
Safety Standards EN61347, GB19510
EMC Standards EN55015, EN61000-3-2
