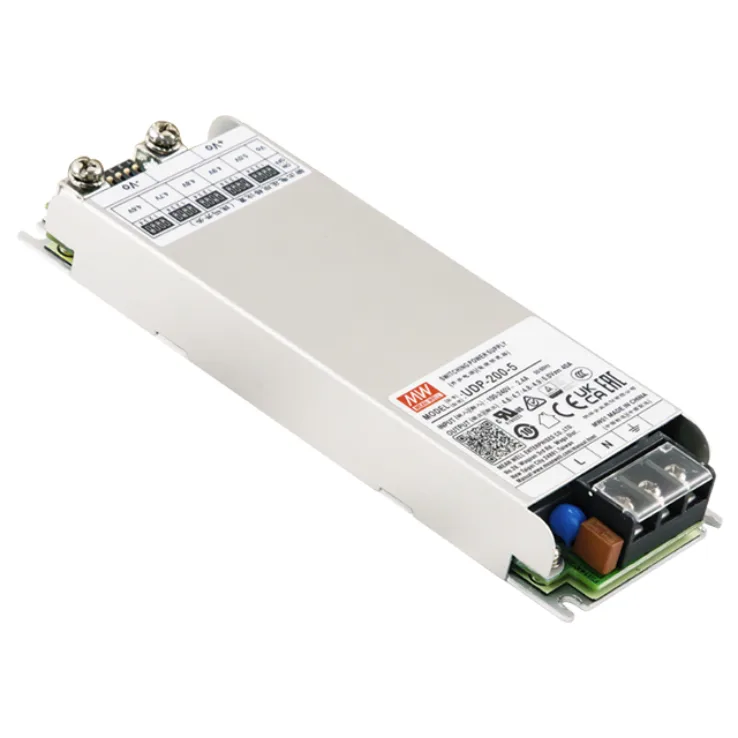

MEAN WELL UDP-200 Enclosed Power Supplies 168–200W

Models:	UDP-200-4.2 UDP-200-4.2 UDP-200-4.2
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

UDP-200 Features:

Universal AC input / Full rangeWithstand 300VAC surge input for 5 secondsLow profile: 19mmHigh efficiency up to 92%Built-in active PFC functionFanless design, cooling by free air convectionProtections: Short circuit / Overload / Over voltage / Over temperatureOutput voltage adjustable: DIP switchRedundant function (R Type)Operating altitude up to 5000 meters (Note 9)Conformal coatingLED indicator for power on3 years warranty

Spec	UDP-200-4.2	UDP-200-4.6	UDP-200-5
Wattage	168	184	200
Input Voltage	90 ~ 264VAC	90~264	90~264
Output Current	40A	40A	40A
Output Voltage	4.2	4.6	5
Dimensions	150x50x19	150x50x19	150x50x19
Working Temperature	-40 ~ +70℃
Safety Standards	CUL,TUV-62368-1,CCC,CB,CE,EAC,UKCA
EMC Standards	S EN/EN55032 (CISPR32), GB/T 9254.1, BS EN/EN61000-3-2 (IEC61000-3-2), GB17625.1, and BS EN/EN61000-3-3 (IEC61000-3-3), and EMC immunity standards BS EN/EN55035 (CISPR35) and BS EN/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, and -4-11.
