MEAN WELL

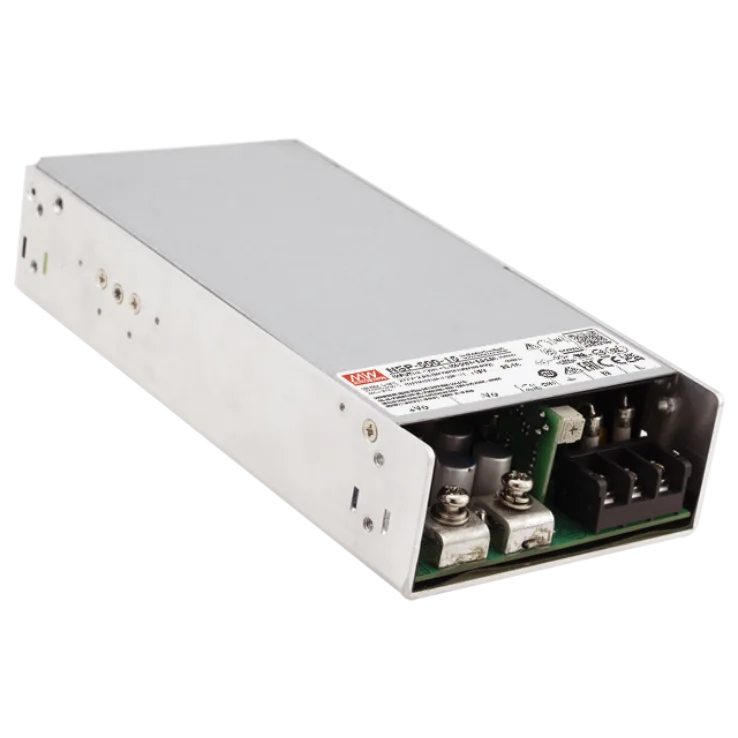

MEAN WELL NSP-500 Series Enclosed Power Supplies 450–504W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
NSP-500 Series Features:
| Wattage | 450 | 504 | 501 | 504 | 502.2 | 500.4 | 504 | 504 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 85~305Vac | 85~305Vac | 85~305Vac | 85~305Vac | 85~305Vac | 85~305Vac | 85~305Vac | 85~305Vac |
| Output Current | 90A | 90A | 33.4A | 21A | 18.6A | 13.9A | 10.5A | 8.4A |
| Output Voltage | 5V | 12V | 15V | 24V | 27V | 36V | 48V | 60V |
| Dimensions | 199 x 99 x 41 mm | 199 x 99 x 41 mm | 199 x 99 x 41mm | 199 x 99 x 41 mm | 199 x 99 x 41 mm | 199 x 99 x 41mm | 199 x 99 x 41 mm | 199 x 99 x 41 mm |
| Working Temperature | -40~+85C | |||||||
