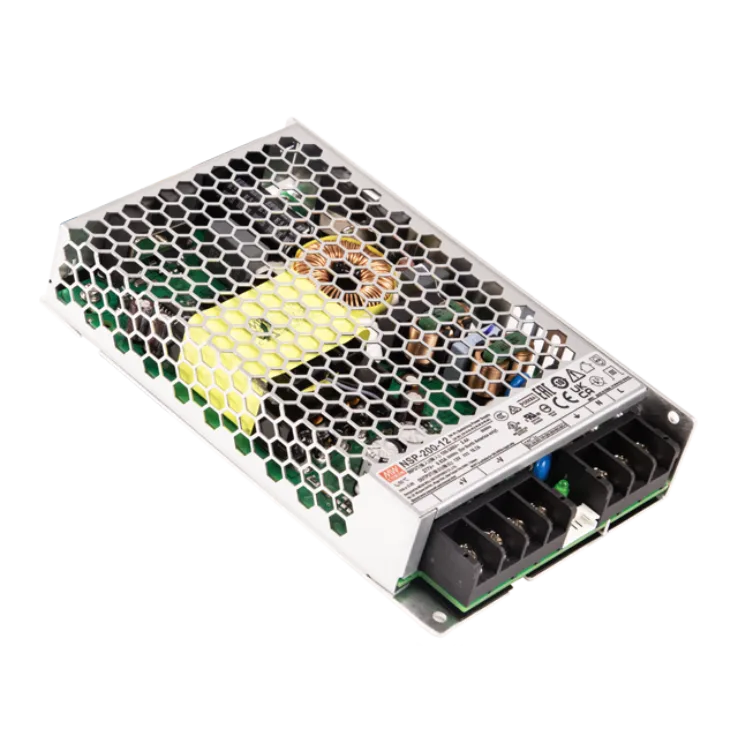

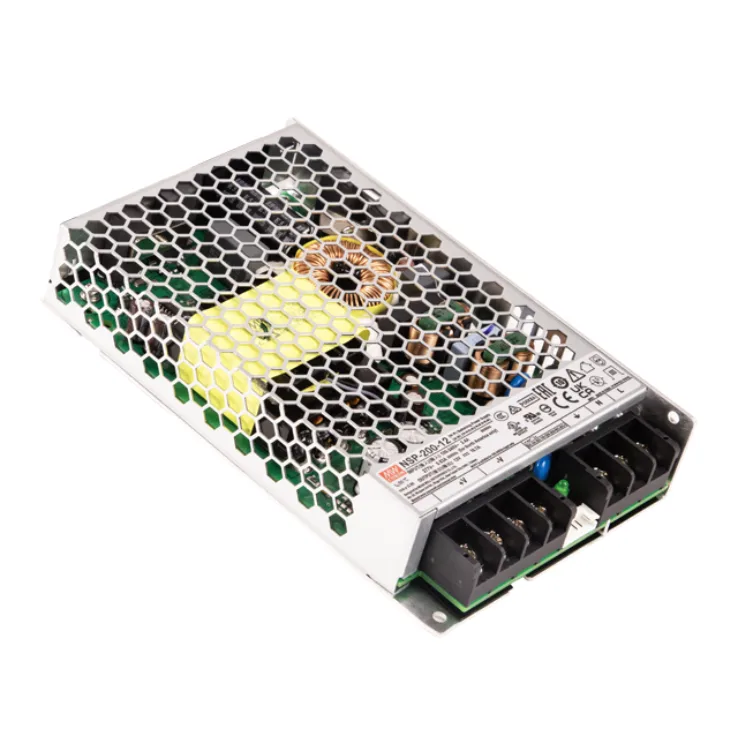

MEAN WELL NSP-200 Enclosed Power Supplies 199.8–201.6W

Models:	NCP-200-5 NSP-200-7.5 NSP-200-12 NSP-200-15 NSP-200-24 NCP-200-27 NCP-200-36 NCP-200-48 NCP-200-60
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

NSP-200 Features:

The NSP-200 series is a 200W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.

Features:

85~305Vac input with PFC (277Vac available)
No load power consumption <0.75W by R.C.
Global certificates in multi-fields
200% peak power capability (12~60V models)
High efficiency up to 93%
-40~85C wide range operation temperature (>+60C derating)
Extremely low leakage current <350uA, 2 x MOPP, suitable for BF medical applications
Built-in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design for noise sensitive applications
Built-in remote ON/OFF control
Over voltage category III (OVC III)
Operating altitude up to 5000 meters
Conformal coating
5 years warranty

Spec	NSP-200-5	NSP-200-7.5	NSP-200-12	NSP-200-15	NSP-200-24	NSP-200-27	NSP-200-36	NSP-200-48	NSP-200-60
Wattage	200	201	200.4	201	201.6	199.8	201.6	201.6	201.6
Input Voltage	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac	85~305Vac
Output Current	40A	26.8A	16.7A	13.4A	8.4A	7.4A	5.6A	4.2A	3.36A
Output Voltage	5V	7.5	12V	15V	24V	27V	36V	48V	60V
Dimensions	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm	159x97x30mm
Working Temperature	-40 ~ +85C	-40~85C								-40 ~ +85C
