| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |

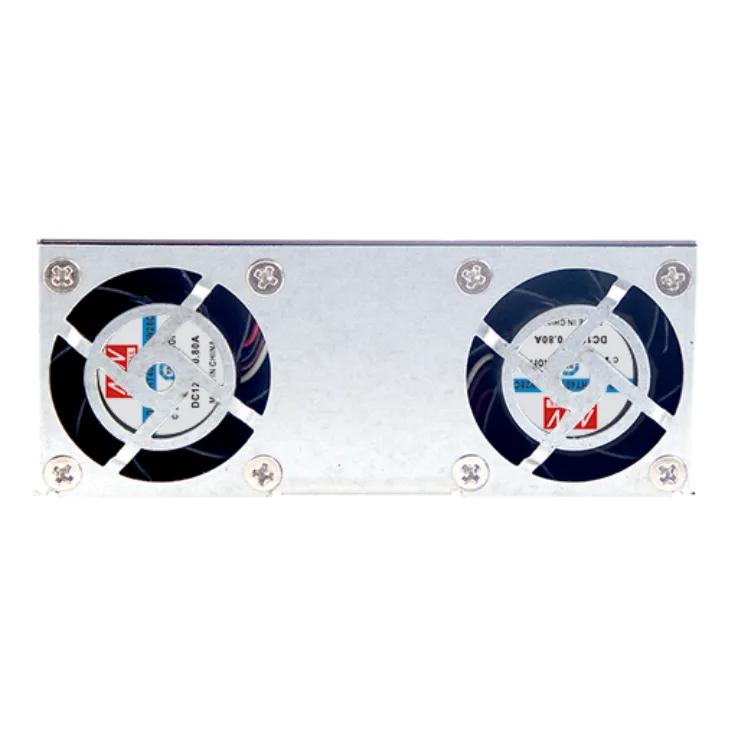

The NSP-2400 series is a 2400W AC/DC power supply with PFC function, designed for high reliability and suitability across multiple industries. Key features include a compact size (325.8 × 107 × 41mm) for space-saving installations, ultra-wide input range of 85–305Vac for global compatibility, up to 93% efficiency, programmable output voltage (0–120%) and current (0–100%), constant current design with 200% peak power capability, and parallel operation up to 9600W. The unit includes built-in CANBus communication, operation from -40°C to +85°C (+60°C at full load), remote control/remote sense, DC OK signal, auxiliary power outputs, conformal coating, and comprehensive protection functions. Certified to IEC 62368-1, IEC 60601-1, IEC 61558-1, IEC 60335-1, IEC 62477-1, and IEC 61010-1 standards, it also meets 2 × MOPP requirements with leakage current below 500µA. Suitable for BF-rated medical equipment and backed by a 5-year warranty, the NSP-2400 offers a cost-effective solution for industrial and medical power applications.
| Wattage | 2200 | 2200 | 2400 | 2397 | 2397 | 2400 | 2400 |
| Input Voltage | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc | 85-305Vac / 250-431Vdc |
| Output Current | 183.3A | 146.7A | 100A | 88.8A | 66.6A | 50A | 40A |
| Output Voltage | 12V | 15V | 24V | 27V | 36V | 48V | 60V |
| Dimensions | 325.8*107*41mm | 325.8*107*41mm | 325.8*107*41mm | 325.8*107*41mm | 325.8*107*41mm | 325.8*107*41mm | 325.8*107*41mm |
| Working Temperature | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| Safety Standards | CB DEKRA UL CQC BSMI EAC SEMI F47 KC/BIS IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1; IEC62477-1 BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1(3.2 Version);BS EN/EN62477-1 UL62368-1, ANSI/AAMI ES60601-1(3.2 Version),UL61010-1/-2-201 GB4943.1 CNS15598-1 TP TC 004 approved KC 62368-1 and BIS IS 13252(Part 1) certified, | ||||||
| EMC Standards | BS EN/EN55035(CISPR35),BS EN/EN61000-6-2(IEC61000-6-2),BS EN/EN60601-1-2(IEC60601-1-2), BS EN/EN55014-2(CISPR14-2),KS C 9835,SEMI F47 tested at 200Vac | ||||||
