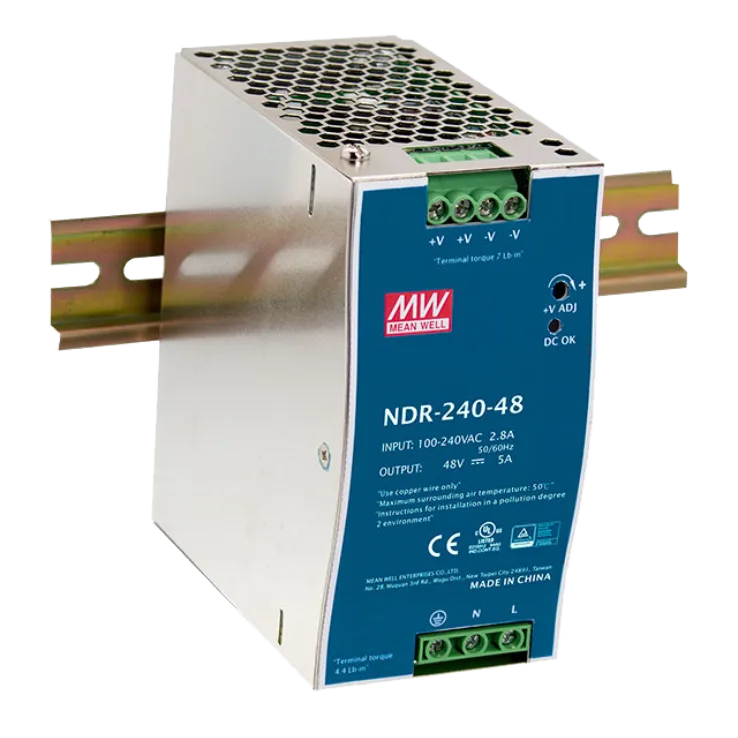

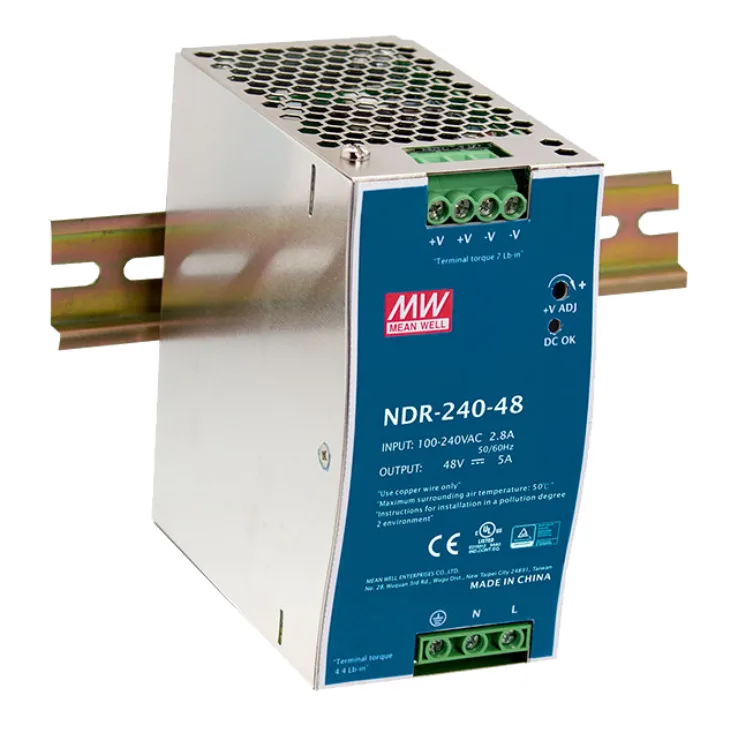

MEAN WELL NDR-240 Series DIN Rail Power Supplies 240W

Download Datasheet
Models:
  • NDR-240-24
  • NDR-240-48
Manufacturer: MEAN WELL
Type: DIN Rail Power Supplies

NDR-240 Series Features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be instaled on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN500082-2) Industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty
Wattage 240 240
Input Voltage 90-264VAC 90-264VAC
Output Current 10A 5A
Output Voltage 24 48
Output Voltage Options Single Single
DC output adjustment 24-28V 48-55V
Dimensions 63x 125.2x 113.5 63x 125.2x 113.5
Working Temperature -20-+70°C
Safety Standards UL508, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A
