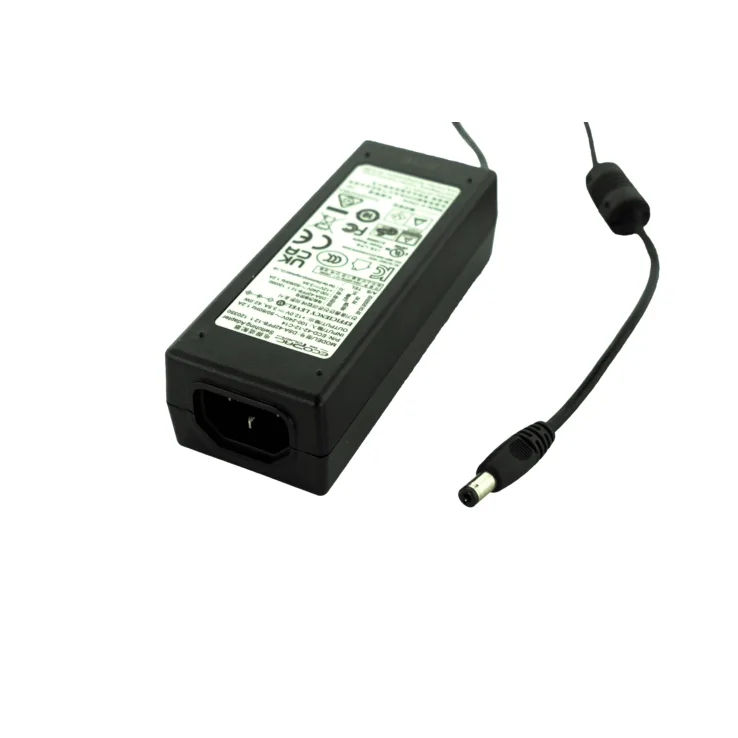

ECD42 Series External Power Supplies 42W

Download Datasheet
Models:
  • ECD-42-12-C14
  • ECD-42-24-C14
Type: External Power Supplies

ECD42 Series Features:

42 Watt Desk Top

Features :

  • C14 Input
  • DOE Level VI Efficiency
  • Overcurrent Protection
  • Short Circuit Protection
  • RoHS Compliant
  • 1 Year Warranty
  • EN62368 Approved
Wattage 42 42
Input Voltage 90~264VAC 90~264VAC
Output Current 3.3 1.75
Output Voltage 12 24
Working Temperature 0~40°C
Safety Standards UL/CuL 62368-1, GS/TUV EN62368-1, SAA AN/NZ 62368.1, KC K60950-1, PSE J62368-1, CCC GB4943.1-2011
EMC Standards EN55032,RCM, KCC KN22,KN24, PSE J55032 FCC Part 15 Class B
