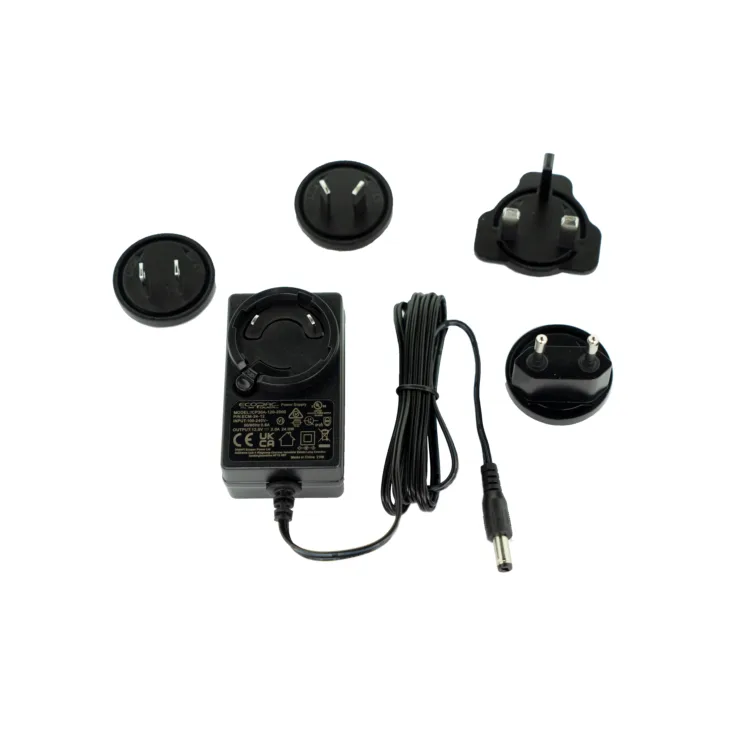

ECM24 Range External Power Supplies 24W
Download Datasheet
| Models: |
|
| Type: | External Power Supplies |
ECM24 Range Features:
Features:
- Interchangeable AC Heads
- DOE Level VI Efficiency
- Overcurrent Protection
- Short Circuit Protection
- RoHS Compliant
- 1 Year Warranty
- EN62368 Approved
| Wattage | 24 | 24 | 24 | 24 |
|---|---|---|---|---|
| Input Voltage | 90~264vac | 90~264vac | 90~264vac | 90~264vac |
| Output Current | 3amp | 2.5amp | 2amp | 1amp |
| Output Voltage | 5vdc | 9vdc | 12vdc | 24vdc |
| Working Temperature | 0~40°C | |||
| Safety Standards | UL/CUL 62368-1, GS/TUV EN62368-1, SAA AS/NZ62368-1 | |||
| EMC Standards | EN55032, EN55035, FCC Part 15 Class B | |||
